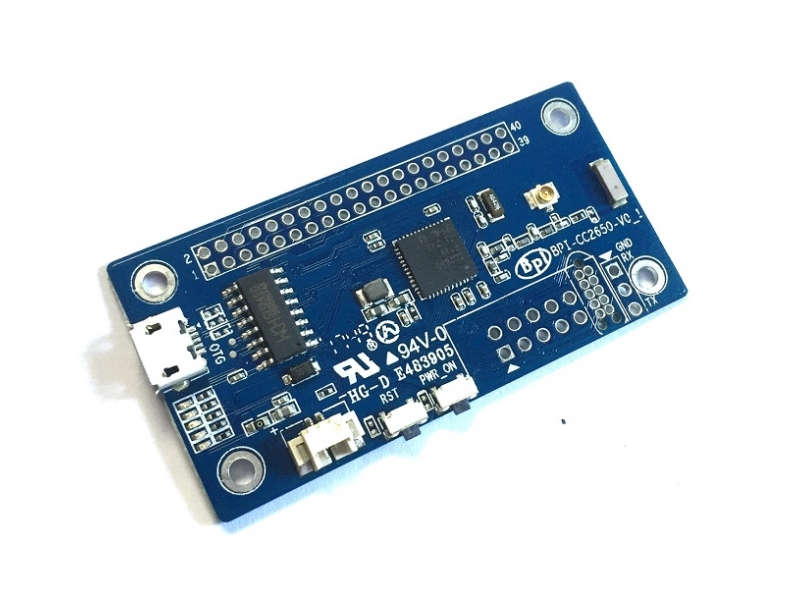

香蕉派 BPI-CC2650 Zigbee 开发模组采用Linaro 96Boars标准

  • TI CC2650 chip design with Bluetooth4.2,ZigBee and 6LoWPAN
  • TI CC2640 chip design with Bluetooth4.2 and Bluetooth 5
  • TI CC2630 6LoWPAN, ZigBee
  • Linaro 96Board standard
    BPI-CC2650 Linaro 96Board 采用TI CC2650芯片设计的开发板,这是一款Linaro 96Board标准开发板。 CC2650是一款用于蓝牙智能ZigBee和6LoWPAN,以及ZigBee RF4CE远程控制应用的无线MCU

    1.BPI-CC2650 模组:
    • TI CC2650 chip design with Bluetooth4.2,ZigBee and 6LoWPAN
    • TI CC2640 chip design with Bluetooth4.2 and Bluetooth 5
    • TI CC2630 6LoWPAN, ZigBee
    • Linaro 96Board standard
    硬件接口示意图:

    硬件规格:
    HardwareSpecification of BPi-CC2650
    Soc TI CC2650 (option:CC2640 CC2630)
    CPU ARM Cortex™-M3 CPU
    SDRAM size 20 KB of ultralow-Leakage SRAM, 8KB of SRAM for Cache
    Flash size 128KB
    Power 5V/2A via MicroUSB / 3.7V via Battery Connector
    Low-level peripherals 40 Pins Header 2xSSI,I2C,I2S,UART;All Digital Peripheral Pins Can Be Routed to Any GPIO
    On board Network Zigbee, BT4.2
    micro USB 1 micro USB to Uart for debug
    Buttons Reset button, User button
    Leds 1 Power status Led and 4 other Leds
    Sizes 60mm×30mm
    Weight 10g
    在线wiki开发文档:https://wiki.banana-pi.org/BPI-CC2650_Zigbee_BT_Linaro_96Boars
