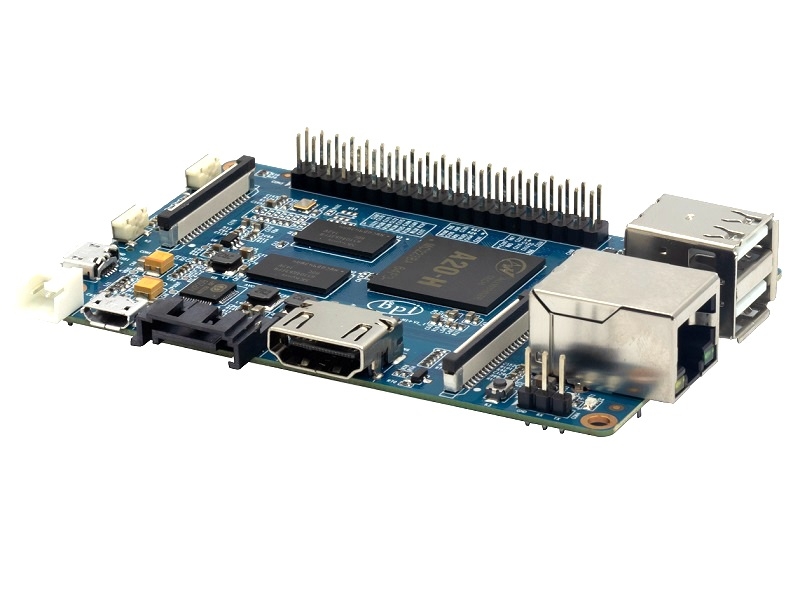

Banana PI BPI-M1+是一款高性能双核开源硬件单板计算机，Banana PI BPI-M1+是一款比树莓派 2B 更强悍的双核Android4.4与Linux产品。
Banana PI BPI-M1+兼容性强大,可以跑android系统,Debian linux,Ubuntu linux, Raspberry Pi系统 和 cubieboard 系统.
Banana PI BPI-M1+硬件：1Ghz ARM7双核处理器，1GB DDR3内存，千兆以太网口，板载SDIO接口的WIFI模块SATA Socket，流畅运行Android4.4。Banana PI BPI-M1+体积如信用卡大小，轻松运行《雷神之锤三：竞技场》这样的游戏，支持1080P高清视频输出，GPIO兼容Raspberry Pi 2并直接运行其ROM Image。

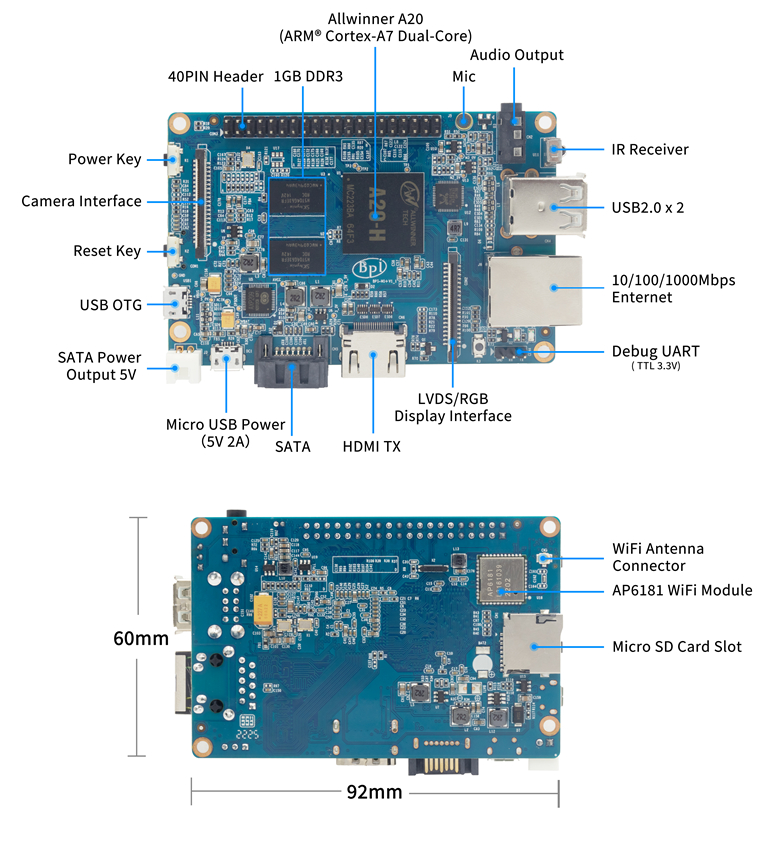

硬件接口示意图:
硬件规格:
| Banana Pi BPI-M1+ 硬件规格 | |||
| CPU | A20 ARM Cortex -A7 Dual-Core | ||
| GPU | ARM Mali400MP2Complies with OpenGL ES 2.0/1.1 | ||
| Memory | 1GB DDR3 | ||
| Network | 10/100/1000 Ethernet | ||
| wifi&BT | Wifi support onboard | ||
| Video Input | A CSI input connector allows for the connection of a designed camera module | ||
| Video Outputs | HDMI, CVBS, LVDS/RGB | ||
| Audio Outputs | 3.5mm jack and HDMI | ||
| Power Source | 5V/2A via Micro USB (DC in only) and / or Micro USB OTG | ||
| USB 2.0 ports | 2(direct from Allwinner A20 chip) | ||
| GPIO | GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND | ||
| LED | Power Key & 8P8C | ||
| Storage | SATA 2.0 | ||
| OS | Android 4.4, Android 4.2, Raspbian, Lubuntu, Open Suse, Debian | ||
在线 Wiki 开发文档: https://docs.banana-pi.org/en/BPI-M1_Plus/BananaPi_BPI-M1_Plus
Github开源源代码 : https://github.com/BPI-SINOVOIP/BPI-M1-bsp
