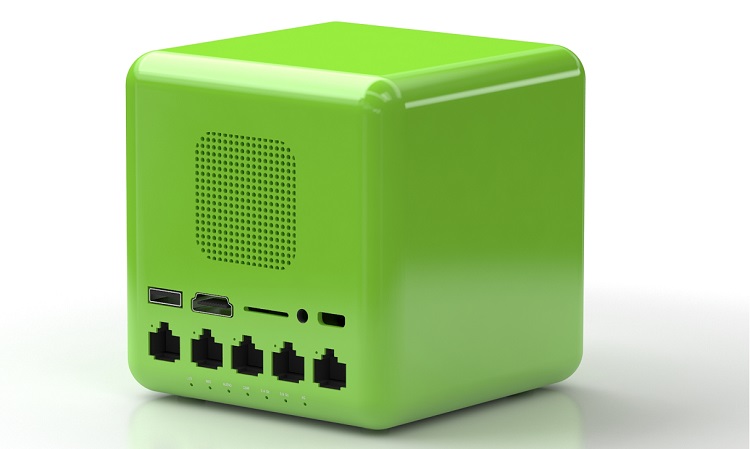

MutiQB 概念：
•产品定位——智能机顶盒
•杂货市场——B2B / B2C
•产品类别:电子产品/微型电脑
•子类-多网络设备/互联网供应商

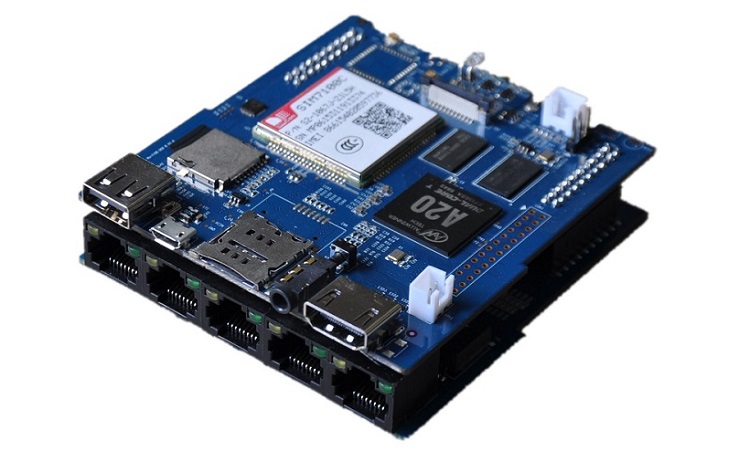

硬件规格:
- SIZE: two-deck, 88x88 mm
- CPU Chipset: A20 ARM Cortex™-A7 Dual-Core 1 GHz
- GPU Chipset: ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
- Memory: 1 GB DDR3
- Storage Slot: micro SD Card 16G Bytes
- Network Ethernet: – 10/100/1000Mbps WAN x 1 – 10/100/1000Mbps LAN x 4
- WIFI: – 3x 2.4GHz, Support IEEE 802.11b/g/n，Up to 300Mbps – 1x 5GHz，Support IEEE 802.11a/n/ac，Up to 433Mbps – External High-Gain Antenna 2.4GHz x3，5GHz x1 –WIFI model MT7632 or AP6335
- 4G LTE – SimCom Sim7100C, FDD B3 LTE 1800, – Model SIM7100C – External High-Gain Antenna 4G x1
- USB: USB Host 2.0 x 1
- CAMERA: Camera x 1, Screen resolution HD 1280x720 pixels, 30 FPS, UVC H.264 encoding technology, CSI Connector
- AUDIO Input: Microphone x 1
- VIDEO Outputs: HDMI out x 1
- AUDIO Outputs: 3.5mm Jack and HDMI
- SPEAKER: BP-5032-44, 1xSpeaker, Diameter 50mm, Depth 32mm, Power 4w, Impedance 4±15%Ω
- KEY: POWER KEY x 1 Touch Sensor Power Button RESET KEY x 1
- LED: RJ45 LED (Upload, Download) x 5 WIFI LED (2.4G, 5.8G) x 2 POWER STATUS LED x 1 GPIO LED (4 pins LED) x 1 USB LED x 1 CAMERA LED x 1 4G LED x 1 AUDIO LED x1 MICROPHONE LED x1
- Debugging: Serial Console, JTAG
- Reserved Pin: GPIO PIN x 26, UART, 12C bus, SPI bus with two chip selects, CAN bus, ADC, PWM, +5V, +3.3V, GND
- IR Receiver: x1
- Power Source: Micro-USB Power DC 5V/2A
- Battery: Li-ION 4400 mAh 3.7V, Battery Connector: x1
- Adaptor: DC Adaptor 5V/2A with micro-USB cable
- easy to add zigbee, z-wave ,NB-IoT and other IoT function.
