Mini PC

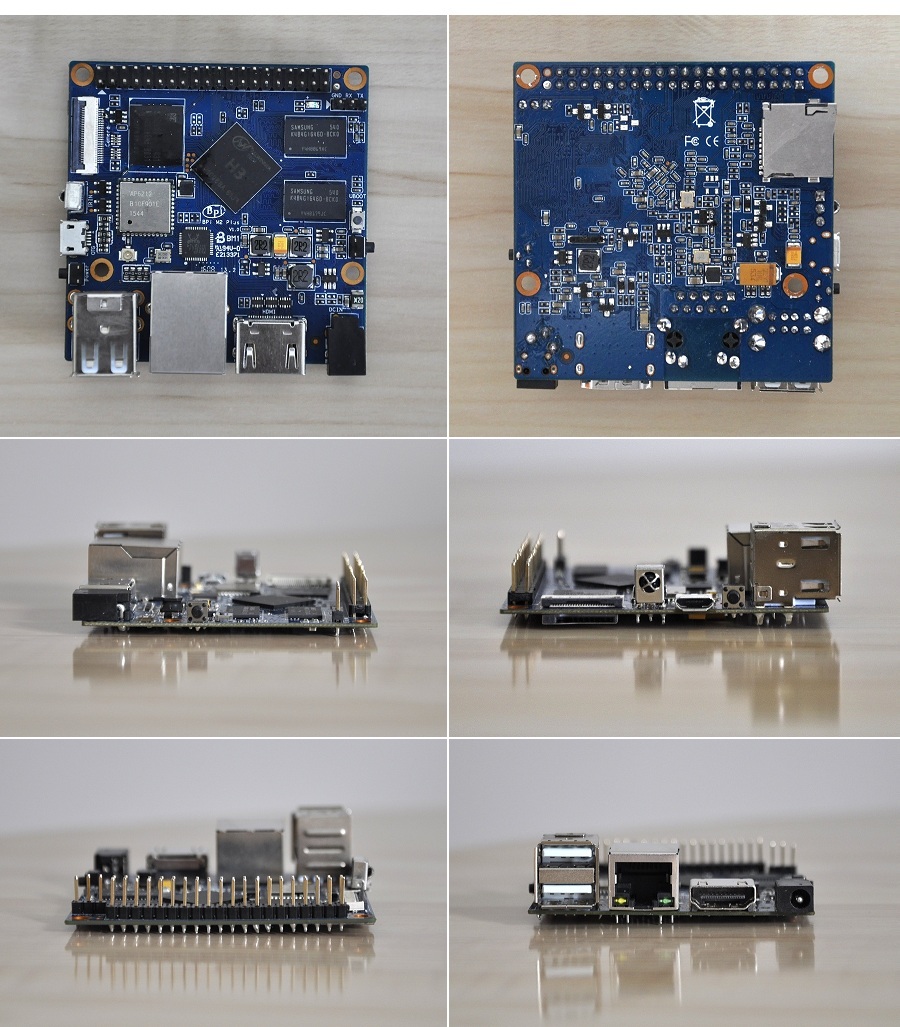

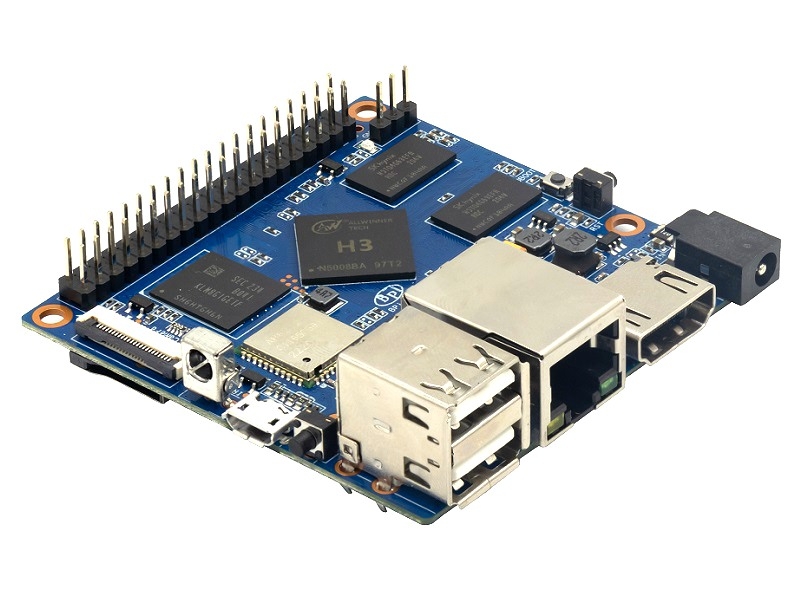

Banana Pi BPI-M2+ with Allwinner H3 chip design,1GB DDR3 RAM and 8GB eMMC

  • Allwinner H3 Quad-core 1.2GHz Cortex-A7
  • 1GB DDR3
  • 8GB eMMC onboard
  • HDMI out
  • WiFi and BT onboard
  • 10/100/1000Mbps Ethernet Port
  • CSI camera interface


    Banana PI BPI-M2+ is the open source hardware platform, use Alliwnner H3 (option H2+ chip and H5 chip ) chip on board. and mini size only 65mm*65mm,PBI-M2 hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi&BT 4.0 moodule on board.Gigabit ethrnet.

    SHOWDOWN: Banana Pi M2+ vs Raspberry Pi 3


    BPI-M2+ series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image. Banana PI,it can easily run with the game it support 1080P high definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ .

    Banana Pi BPI-M2+ not support sata port, so you need use USB for hardisk

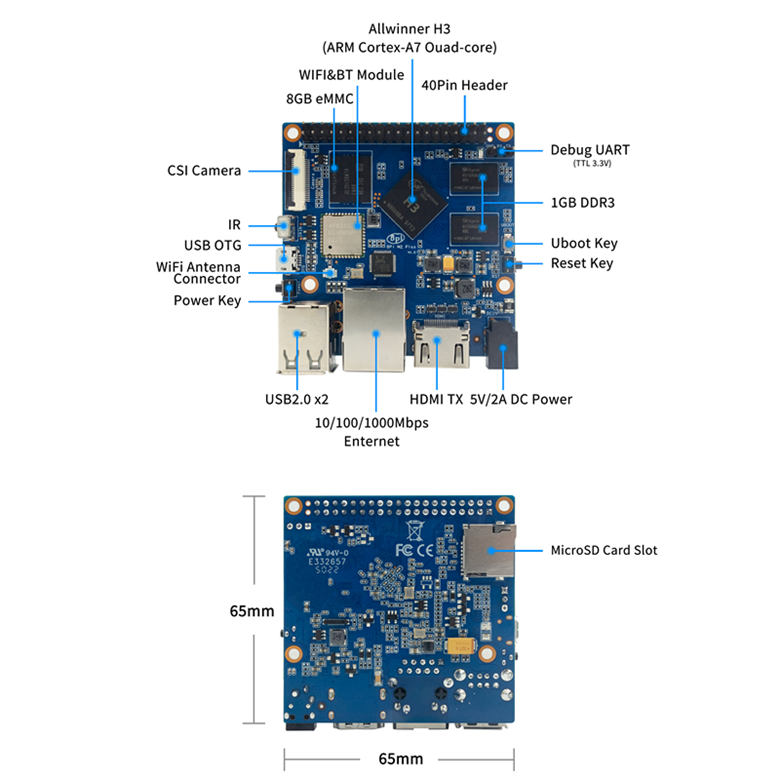

    Hardware interface:



    Hardware spec:

    HardWare Specification of Banana Pi M2+(Plus)
    CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
    GPU Mali400MP2 GPU @600 MHz,Supports OpenGL ES 2.0
    Memory 1GB DDR3 (shared with GPU)
    Flash 8GB eMMC flash onboard
    Network 10/100/1000 Ethernet
    WIFI&BT SDIO AP6212 for Wifi &BT 4.0(option AP6181 AP6335)
    Video Input A CSI input connector Camera:1 Supports 8-bit YUV422 CMOS sensor interface,2 Supports CCIR656 protocol for NTSC and PAL, 3 Supports SM pixel camera sensor, 4 Supports video capture solution up to 1080p@30fps
    Video Outputs Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS
    Audio Outputs HDMI
    Power 5V/2A DC input can supply power, but USB OTG input don’t supply power
    USB 2.0 ports two USB 2.0 HOST, one USB 2.0 OTG
    GPIO 40 Pins Header,compatible with Raspberry Pi B+
    LED Power led & Status led
    IR IR input on board
    OS Android, Ubuntu, Debian, Raspberry Pi Image



    BPI-M2+ Case design:


    Online wiki development documents: https://docs.banana-pi.org/en/BPI-M2_Plus/BananaPi_BPI-M2_Plus
