Mini PC

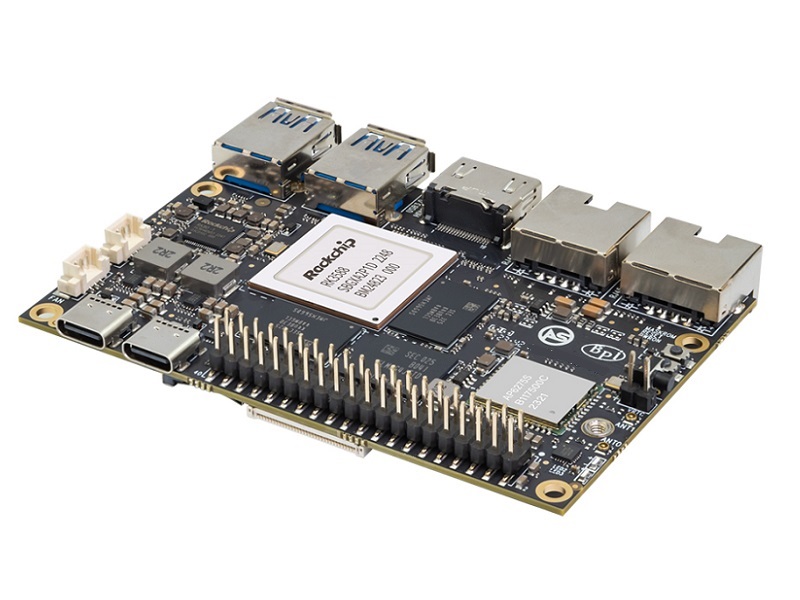

Banana Pi BPI-M7 with Rockchip RK3588, 8-32G RAM and 64-128G eMMC

  • PI-co ITX form factor(2.5 inch, 92 x 62mm)
  • RK3588 powered,Mali G610MC4 GPU
  • 6T NPU
  • 8K 10bit decoder, 8K encoder
  • Support WiFi 6 and BT5.2
  • Support PCIe 3.0 x4 NVMe SSD
  • Triple display support(with HDR)
    • 1 HDMI 2.1 up to 8K@60FPS
    • 1 USB C with DP up to 8K@30FPS
    • 1 MIPI DSI up to 4K@60fps
  • 2x2.5G Ethernet
  • 2x USB 3.0 interface
  • 2x MIPI CSI camera interface
  • 8/16/32GB(LPDDR4x) ram options and 64/128G eMMC options


    Banana Pi BPI-M7 with Rockchip RK3588, 8/16/32G,RAM 64/128G eMMC,wifi6 support . 2x2.5G port ,1xHDMIout ,2x USB3.0,2xTYPE-C,2x MIPI CSI interface and 1x MIPI DSI interface, 1x M.2 KEY M interface,40 PIN GPIO ,Mini size just 92x62mm.

    The Banana Pi BPI-M7 is powered by Rockchip‘s latest flagship RK3588,octa-core 64-bit processor, with a max frequency of 2.4GHz, a 6 TOPS NPU, and up to 32GB of RAM.

    Banana Pi BPI-M7 RK3588 SBC Features:

    * 8K video encoding/decoding support
    * Abundant interfaces support
    * Dual 2.5G Ethernet support
    * WiFi 6 support
    * BT 5 support
    * Multiple video outputs support
    * Multiple operating systems support

    Generally, BPI-M7 is applied for various applications,such as, ARM PCs, edge computing, cloud servers, AI, cloud computing, virtual/augmented reality, blockchain, smart NVRs and more.

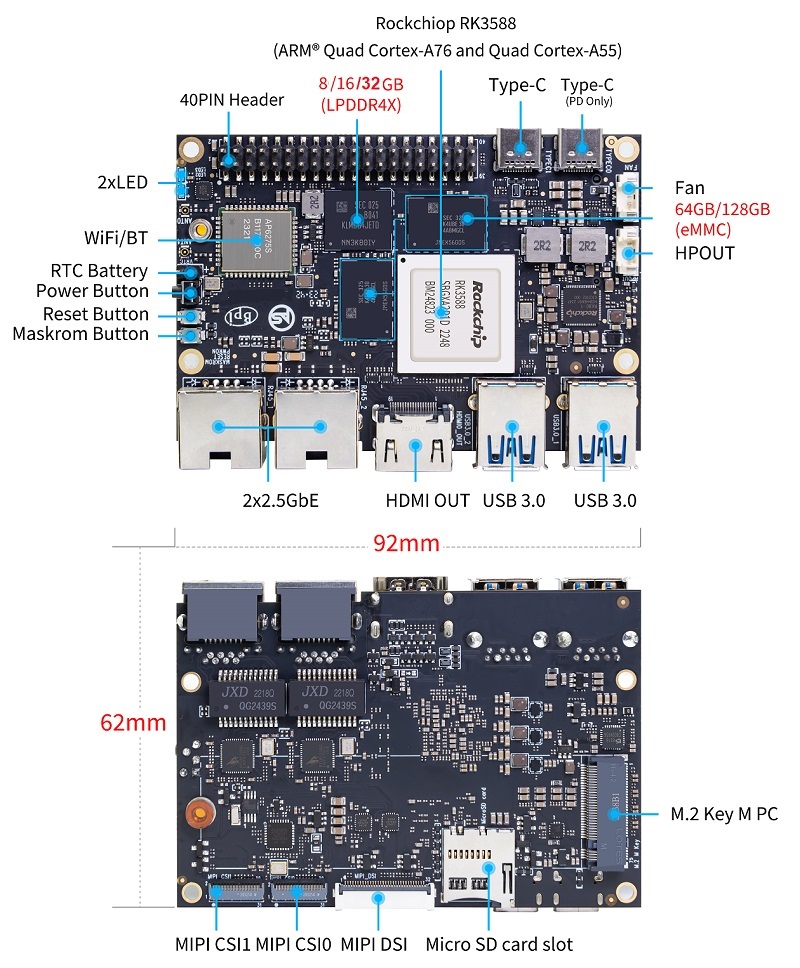

    Hardware interface:


    Hardware spec:

    SOC

    RockChip RK3588

    CPU

    RK3588 Quad-Core Cortex-A76@ 2.4GHz+Quad-CoreCortex-A55@ 1.8GHz,8nm process

    GPU

    GPU Mali-G610 MP4 (4x256KB L2 Cache) Supports OpenGL ES3.2/OpenCL2.2/Vulkan1.1

    NPU

    6 TOPS@INT8(3 NPU core)

    Supports INT4/INT8/INT16 mixed computing

    Supports frameworks like TensorFlow, MXNet, PyTorch, Caffe, Tflite, Onnx NN, Android NN, etc

    VPU/Codec

    Hardware Decode: 8K@60fps H.265/VP9/AVS2、 8K@30fps H.264 AVC/MVC、 4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8

    Hardware Encode:8K@30fps H.265 / H.264

    ISP

    Integrated 48MP ISP with HDR&3DNR

    RAM

    8GB/16GB/32GB(max 32GB )64bit LPDDR4/LPDDR4x,default 8GB LPDDR4x

    Flash

    32GB/64GB/128GB eMMC,default 64GB eMMC,Supports MicroSD card expansion

    PCIe

    1x M.2 Key M (PCIe 3.0 4-lanes). Expandable SSD support for 2280/2260/2242/2230 M.2 SSD cards, default 2280

    Networking

    2x 2.5G Ethernet

    Onboard IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5 (AP6275P)

    Video Out

    1x HDMI 2.1, supports 8K@60fps

    1x MIPI DSI up to 4K@60fps

    1x DP 1.4 up to 8K@30fps

    Video In

    2x 2-lane MIPI CSI, up to 2.5Gbps per lane

    Audio

    1x HDMI audio out

    1x HP audio out

    1x Type-C 3.1 (DP1.4) audio out

    USB

    1x USB 3.0 (USB 3.1 Gen 1), equivalent to USB 3.2 Gen 1/USB 3.0, up to 5Gbps

    1x USB Type-C 3.1(DP1.4/OTG)

    1x USB 2.0 High(480Mbps)/Full(12Mbps)/Low-Speed(1.5Mbps) modes

    40-pin

    Fully compatible with Raspberry Pi 40-pin header for connecting abundant add-on modules

    Supports UART/SPI/I2C/I2S/PWM/ADC/5V Power/3.3V Power

    Other

    1x 5V fan interface

    1x battery connector for low power RTC chip HYM8563TS

    2x LEDs - blue LED blinks on system start, red LED user controllable

    Power Input

    USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A

    Buttons

    1x PWRON button for sleep/wake,1x Reset button for reboot,1x Maskrom button for maskrom burn-in mode

    OS Support

    Official: :Android 12.0,Debian11,Buildroot

    3rd Party:Armbian,Ubuntu 20.04,Ubuntu22.04,Kylin OS

    Dimensions

    92 mm x 62mm

    Operating temperature

    0℃ ~ 80℃

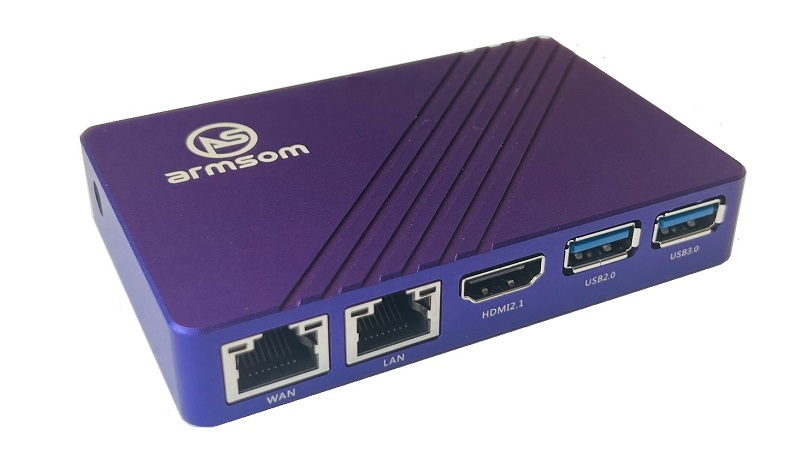

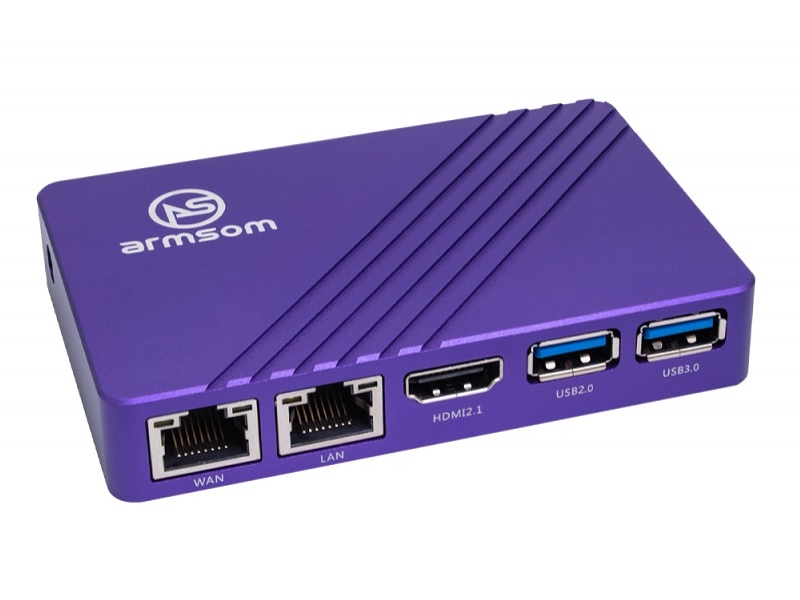

    Case design:





    Online documents : https://docs.banana-pi.org/en/BPI-M7/BananaPi_BPI-M7
