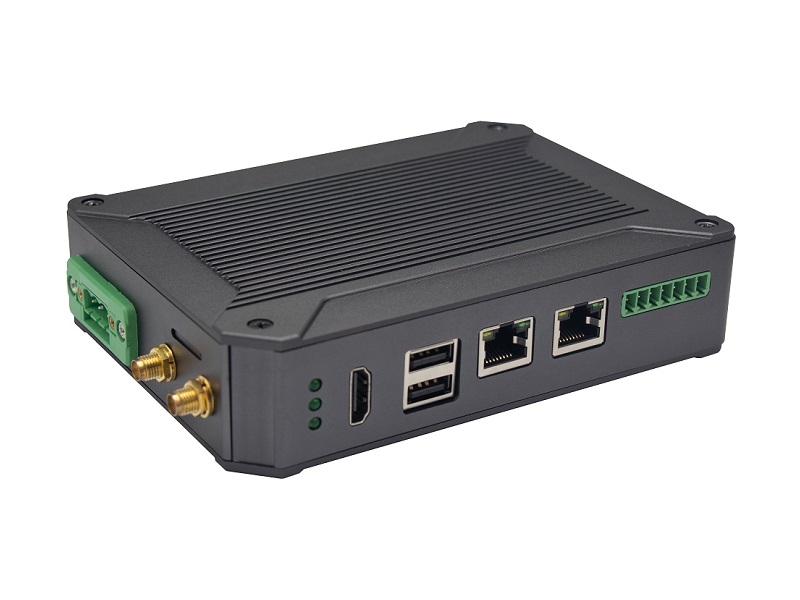

Loongson 2K1000LA chip design As a simple embedded general controller hardware and software development platform, the basic configuration has 2 independent MAC Ethernet ports, 2 RS485 ports, 1 RS232 ports and 2 CAN2.0 ports, the configuration is flexible. Widely used in military, electric power, petroleum, factories and mines, and the Internet of Things industry automation monitoring occasions, to provide application developers with a full range of hardware solutions, and support BSP+docker development environment. Provide strong edge computing support. Developers can quickly utilize the development platform, develop and productize
The LoongArch 2K1000LA processor is a new Loongarch architecture processor that is PIN2PIN compatible with the 2K1000. Compared with 2K1000, 2k1000LA performance is improved by 20%, power consumption is reduced by 20%, more importantly, LoongArch architecture completely rid of MIPS architecture, is currently the only CPU architecture products with complete independent intellectual property rights independent instruction set.

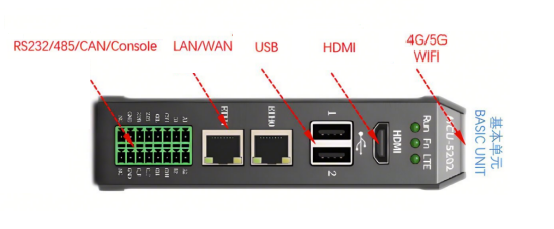

Hardware interface：
|
CPU&OS |
Loongson 2K1000LAi dual core 1.0GHz,Loongnix、LoongOS、LxAMP、kylinos V10 |
|
RAM |
4G DDR3，support SSD Hardisk |
|
communication function |
Ethernet port: 1 x 1000M + 1 x 100M, independent MAC, 2 x RS485 with isolation + 1 x RS232 Consoel with isolation, 4G/5G full Netcom + WiFi |
|
Extended function module |
Horizontal expansion capability is reserved, and the expansion of various functional modules can be customized. The initial stage includes: RS485: with isolation; DI: passive input type, the module provides 24V isolated power supply; DO: relay output type, NC, COM, NO nodes; AI: 0-5V/4-20mA, 2-wire/3-wire input, the board provides 24V isolated power supply; AO: 0-5V/4-20mA, 2-wire/3-wire output, external 24V isolated power supply; AI + AO: 0-5V/4-20mA, 2-wire/3-wire input/output. The power supply is the same as above; other custom modules |
|
HDMI |
HDMI1.4, support 1080p@60fps ; USB supports keyboard, mouse; or resistive/capacitive display interface |
|
encryption chip |
Software license authorization encryption chip (SMEC98SP); special encryption chip for State Grid communication (SC1161Y) |
|
Power |
DC：24V input,24V isolated output for IO board , 500mA |

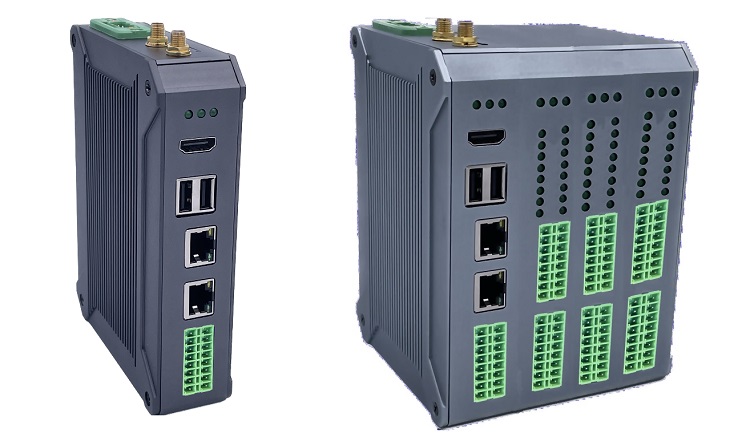

Hardware support cascading expansion, complete rich industrial applications:
More please see Wiki documents：https://docs.banana-pi.org/en/BPI-5202/BananaPi_BPI-5202
