Mini PC

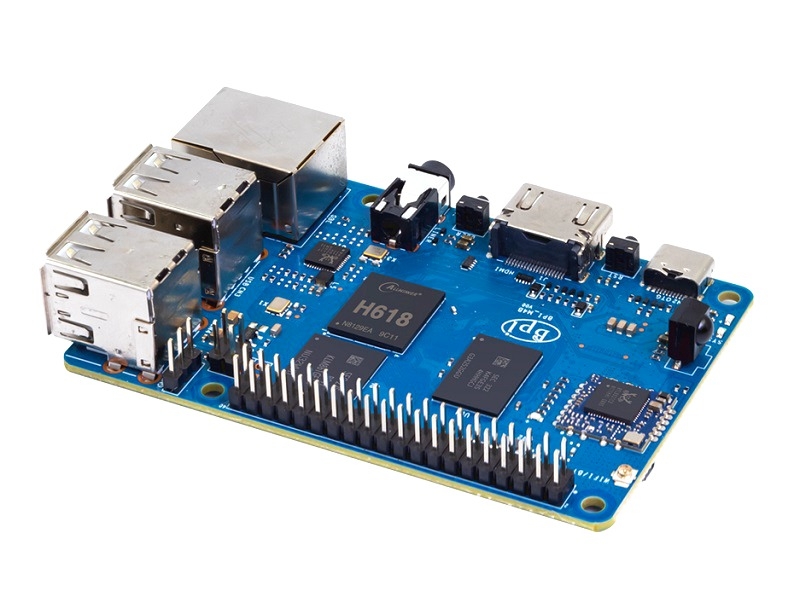

Banana Pi BPI-M4 Berry with Allwinner H618, 2G RAM,8G eMMC onboard

  • Allwinner H618, Quad-core ARM Cortex™-A53 processor
  • ARM Mali G31 GPU
  • WIFI & Bluetooth
  • 2G LPDDR4 RAM
  • 8G eMMC flash memory
  • 1x USB2.0 Type-C OTG, 5V power supply
  • 4x USB2.0 Type-A
  • 1x HDMI 2.0a
  • 1x 3.5mm Audio & TVE jack socket
  • 1x GbE Ethernet port

    Banana Pi BPI-M4 Berry development board stands as a powerful Single Board Computer (SBC), harnessing the capabilities of the Allwinner H618 System-on-Chip (SoC) to provide developers with impressive performance and a wealth of features. Similar to the Raspberry Pi 4b, the BPI-M4 Berry boasts comparable CPU prowess, LPDDR4 memory support, integrated WiFi and Bluetooth functionalities, and a familiar 40-pin header layout, alongside 4 USB interfaces and a GbE RJ45 port.

    Characterized by its robust performance, versatile features, and remarkable image processing capabilities, stands as an exemplary SBC development platform for professionals within the embedded and computing industries. Equipped with 8GB eMMC flash storage, high-performance decoding and encoding capabilities, and an array of interface options, it caters to a wide spectrum of application domains, including media processing, IoT, and entertainment. Whether catering to novices or seasoned developers, the BPI-M4 Berry development board offers an ideal toolset for realizing creative visions and project objectives.

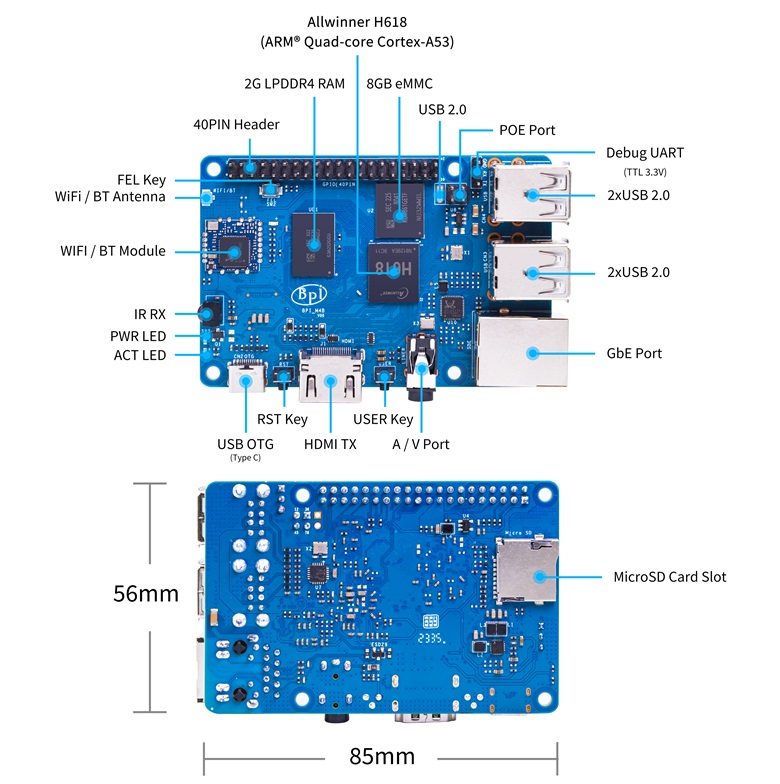

    Hardware interface:


    hardware sprc:
    Hardware Specification of Banana pi BPI-M4 Berry
    CPU Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz
    GPU ARM Mali G31 GPU
    Memory 2 GB LPDDR4
    Storage 8G eMMC flash
    SD card MicroSD card slot
    Wireless 2.4G/5G WiFi and Bluetooth 4.2
    Ethernet 1x GbE Ethernet port(supports PoE with add-on PoE HAT)
    HDMI 1x full-size HDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
    Audio 1x 3.5mm Audio & TVE jack socket
    IR 1x CIR
    USB 4x USB2.0 Type-A HOST, 1x USB2.0 Type-C OTG
    GPIO 40-pin header, 28 pins GPIO and Power (+5V, +3.3V and GND)
    UART, SPI, TWI/I²C, PWM, PCM/I²S
    Buttons Reset, FEL and User
    LED Power Status and Activity status
    Power 5V@3A via USB Type-C
    Size 85x56 mm
    Weight 60g
    Hardware introduction video:



    Online Wiki development documents: https://docs.banana-pi.org/en/BPI-M4_Berry/BananaPi_BPI-M4_Berry
