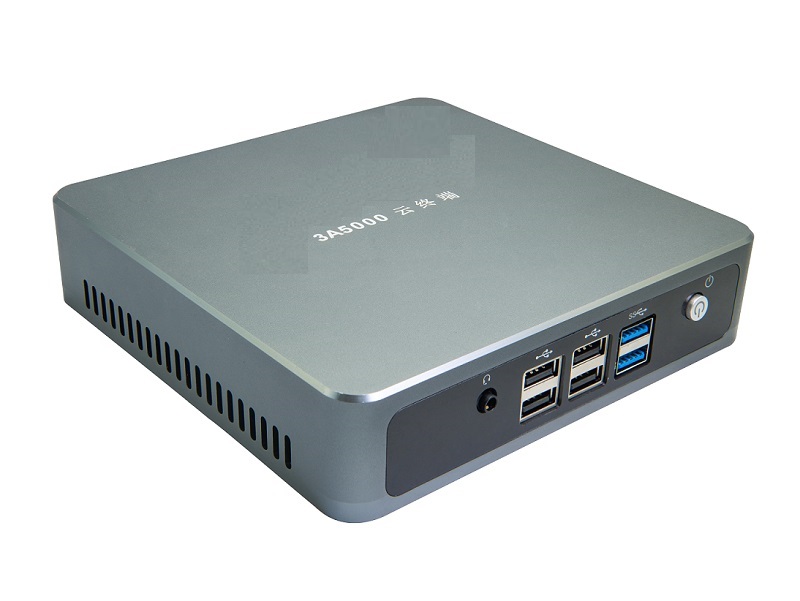

3A5000 Mini PC developed by SinoVoip with Loongson 3th-generation 3A5000 processor + Loongson 7A1000 bridge chip.
3A5000 Mini PC can be applied to enterprise office, personal minicomputs, high-performance industrial computer, as well as education, medical, finance, edge computing and other fields. It has the advantages of high performance computing, portability, low energy consumption and easy management. The Loongson BPI-3A5000 MINIPC supports two DDR4 SODIMM slots, the memory rate is 3200M, a single memory supports 8GB/16GB/32GB, and the maximum memory capacity is 16GB. Storage Supports one M.2 2280-size NVME SSD slot and one 2.5-inch SATA disk expansion.

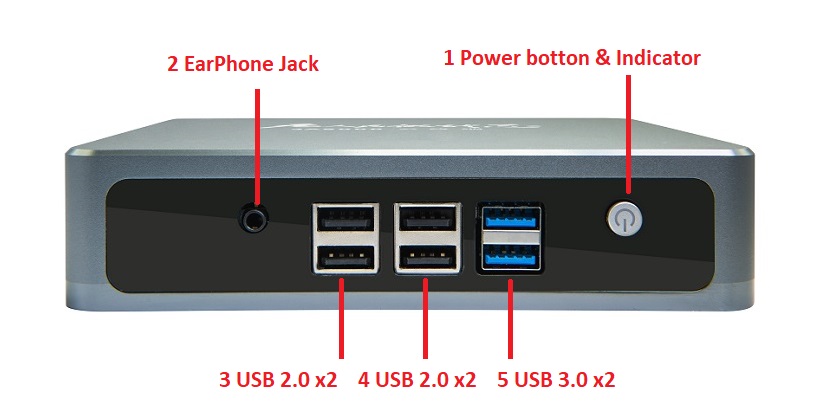

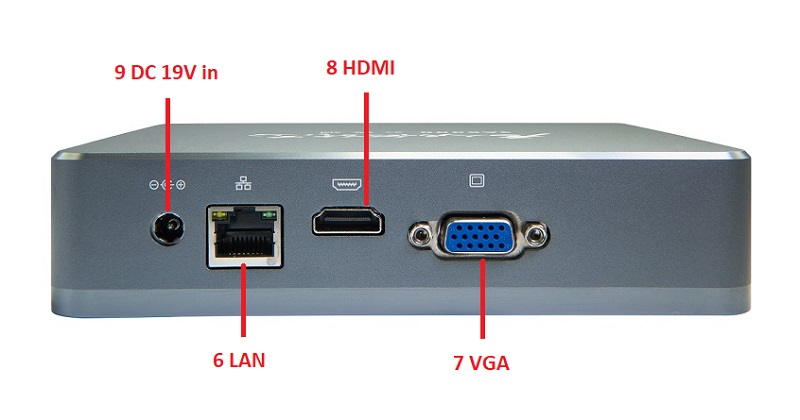

Hardware interface：
Hardware Spec:
| Item | Specifications |
|---|---|
|
CPU |
Supports the third generation of Loongson 3A5000 4-core 8-thread processor, 2.0GHz |
|
Large capacity Level 3 cache (64KB/256KB/16MB) |
|
|
RAM |
One memory slot for supporting the DDR43200 memory rate |
|
Expandable up to 16GB memory, supports only SODIMM |
|
|
Storage |
support 1 x M.2 2280 NVMe SSD (PCIE3.0 x 4 ) |
|
Display |
VGA+ HDMI Dual display interface，Bridge chip built-in integrated GPU, 1Gb video memory, maximum resolution 1920x1080 |
|
Wireless |
Support dual-band wireless WiFi 5G/2.4G，support 802.11AC |
|
External interface |
2 x USB 3.0 + 4 x USB 2.0 ，On the front panel of the chassis |
|
1 x HDMI + 1 x VGA，on the rear panel of the chassis |
|
|
1 x RJ-45 Gigabit network ,on the rear panel of the chassis |
|
|
1 x 3.5mm The earphone/microphone audio port |
|
|
Reserved debugging interface |
1 x TTL Level UART debugging interface, 2.54mm pin |
|
1 x LA-JTAG ，Mainly used for CPU debugging |
|
|
Size |
138mm x 128mm x 48.5 mm(Long x Wide x High) |
|
Power dissipation |
Maximum power consumption: No more than 30W |
|
DC Power |
DC19V 3.42A， 5.5/2.5mm |
|
Cooling system |
1 special custom cooling module |
|
Operating system |
Loongnix/UOS/Kylin OS； |
|
Operating system support is subject to change without notice |
More please see wiki page ：https://docs.banana-pi.org/en/BPI-3A5000/BananaPi_BPI-3A5000
