Smart Router

MediaTek MT7986(Filogic 830),Wi-Fi 6,2.5GbE SFP Wireless Gateway

MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
2G DDR RAM
8G eMMC flash
128MB SPI Nand
2 SFP 2.5GbE
5 GbE network port
Mini PCIe via USB
M.2 KEY-E PCIe interface
Mciro SD card interface
26 PIN GPIO

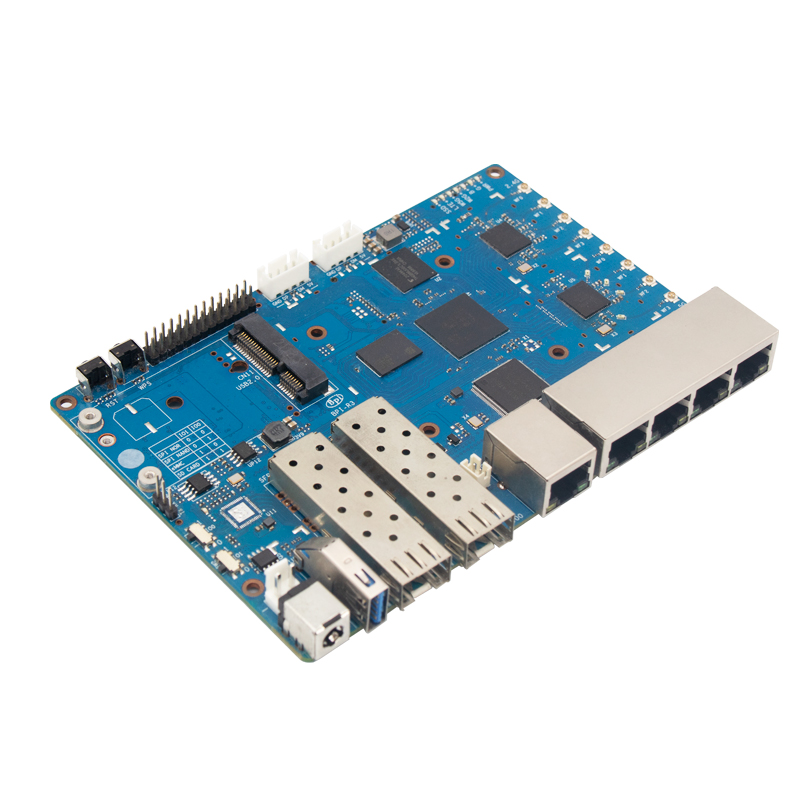

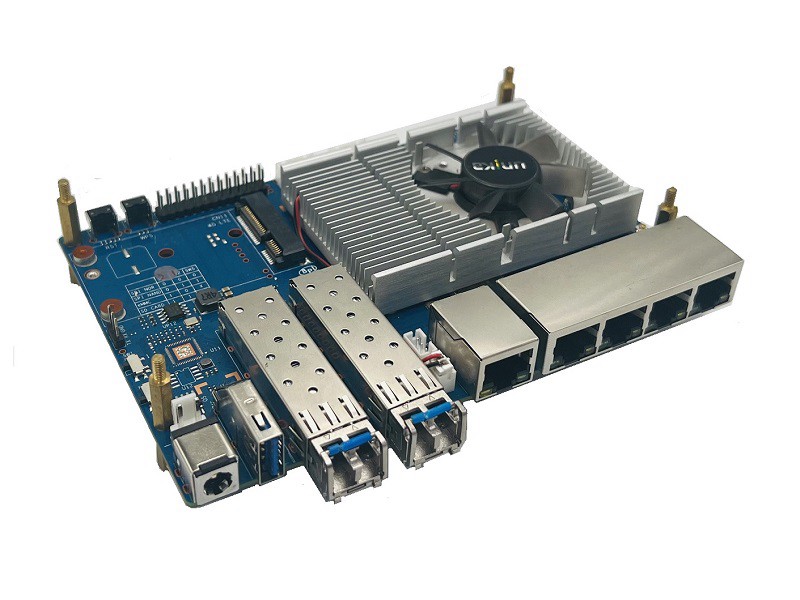

    Banana Pi BPI-R3 Router board with MediaTek MT7986(Filogic 830) quad core ARM A53 + MT7531A chip design ,2G DDR RAM ,8G eMMC flash onboard,It is a very high performance open source router development board,support Wi-Fi 6 2.4G wifi use MT7975N and 5G wifi use MT7975P, support 2 SFP 2.5GbE  port, and 5 GbE network port.



    The MT7986(Filogic 830) integrates four Arm Cortex-A53 cores up to 2GHz with up to 18,000 DMIPs of processing power and 6Gbps of dual 4x4 Wi-Fi 6 connectivity. It has two 2.5g Ethernet interfaces and serial peripheral interfaces (SPI). Filogic 830‘s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection. In addition, the chip supports Mediatek FastPath™ technology, which is suitable for games, AR/VR and other low-latency applications. Wi-fi 6E has many advantages over its predecessors, including lower latency, larger bandwidth capacity and faster transmission rates. Wireless network devices supporting the 6GHz band mainly use 160MHz wide channel and 6GHz uncongested bandwidth to provide multigigabit transmission and low-latency wi-fi connection, providing reliable wireless network for streaming media, games, AR/VR and other applications.

    Application direction:
    1,Internet service Router
    2,Wireless Router
    3,Wireless Repeater
    4,Home security Gateway
    5,Home Automation
    6,Nas device
    7,Network and communication applications

    BPI-R3 hardware interface:

    Hardware spec:
    HardWare Specification of Banana pi BPI-R3
    CPU MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
    SDRAM 2 GB DDR4
    On board Storage MicroSD (TF) card,8GB eMMC onboard
    GPIO 26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
    On board Network 5 Port 10/100/1000Mbps Ethernet
    SFP 2 SFP 2.5GbE
    Wifi Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
    mini PCIE Mini PCIe via USB
    M.2 interface M.2 KEY-E PCIe inerface
    USB 1 USB 3.0 host ,2 USB interface with slot.
    Buttons Reset button,WPS botton, boot switch
    Leds Power status Led and RJ45 Led
    DC Power 12V/2A with DC in
    Sizes 100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2
    Weight 200g
    Hardware introduction video:




    Banana Pi BPI-R3 CE, FCC RoHS:

    Online wiki documents : https://docs.banana-pi.org/en/BPI-R3/BananaPi_BPI-R3
