Mini PC

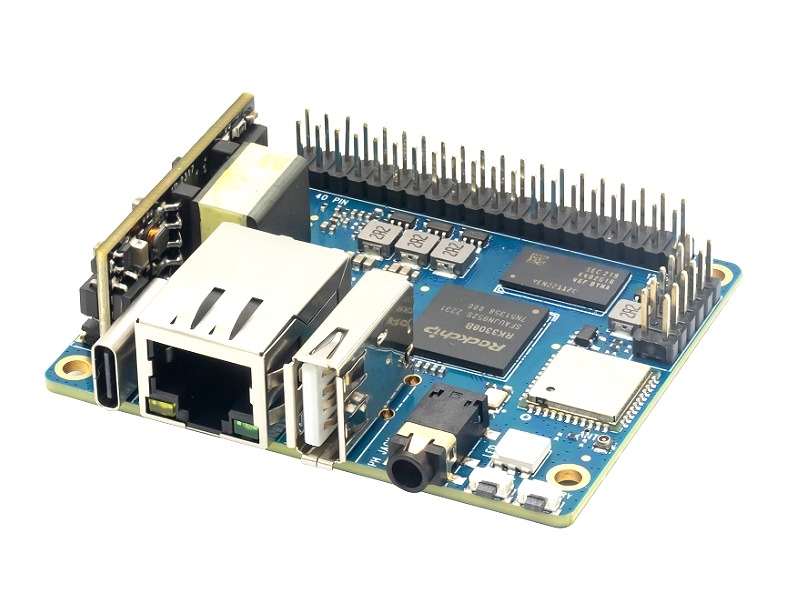

Banana Pi BPI-P2 Pro IoT board with Rockchip RK3308 design ,with 512M RAM and 8G eMMC,support PoE

  • CPU: 64bits Quad-core Arm Cortex-A35 Rockchip RK3308
  • 512 DDR3 SDRAM
  • 8G eMMC flash onboard
  • WiFi (AP6256) & BT onboard
  • 40 PIN GPIO,It includes UART, SPI, I2C, IO etc
  • 100M LAN
  • IEEE 802.3af PoE standard PoE module support


    Banana Pi BPI-P2 pro(Armsom Pro) is a development board based on RK3308B-S chip. With a high-performance 4-core ARM Cortex-A35 processor, 512M RAM(16bit DDR2/DDR3/DDR3L/LPDDR2). and 8G eMMC onboard ,support PoE function.The chip has a wealth of interfaces, such as I2S,PCM,TDM, I2C,UART,SPDIF,HDMI ARC, etc., to meet the application of different products. RK3308 has a rich voice interface, its own eight ADC interface, multi-channel I2S and multi-channel PDM interface. This not only provides customers with a wealth of interface choices, but also can reduce the hardware design difficulty and hardware design cost of products.
    Banana Pi BPI-P2 Pro has 512MB DDR3 memory size, operating system and storage can use SD card or emmc. BPI-P2 Pro is available as an onboard storage version with 1Gb/2Gb/4Gb/8Gb NAND flash

    Application direction
    • Maker DIY
    • IoT Smart Internet of Things
    • Intelligent speech recognition,
    • Man-machine interface,
    • Industrial control,
    • Intelligent robot.

    Key Features:
    • CPU: 64bits Quad-core Arm Cortex-A35 Rockchip RK3308
    • 512 DDR3 SDRAM
    • 8G eMMC flash onboard
    • WiFi (AP6256) & BT onboard
    • 40 PIN GPIO,It includes UART, SPI, I2C, IO etc
    • 100M LAN
    • IEEE 802.3af PoE standard PoE module support

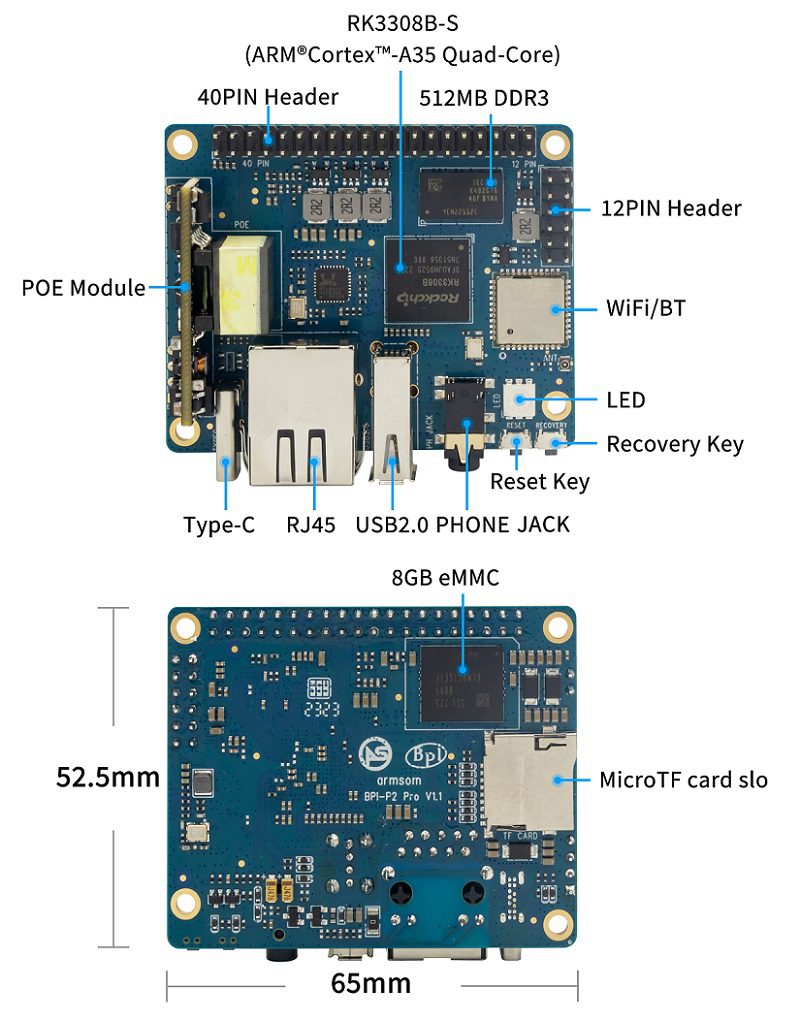

    Hardware interface:

    Hardware spec:

    Banana Pi BPI-P2 pro
    SOC RockChip RK3308B-S
    CPU Quad-core ARM Cortex-A35
    GPU none
    ROM 512MB
    RAM 8GB eMMC
    TF Card TF card (Max 64GB)
    Network 100M LAN
    PoE power PoE function support,Output Voltage 5V, Output Power 10W
    WiFi AP6256
    Audio Output With built-in audio CODEC, including ADC×8 and DAC×2
    Power Source TYPE C 5V/2A or PoE power
    USB 1xUSB 2.0 1xType-C
    Others Fan、RTC、LED、debug
    Button Power Button、Reset Button、 Recovery Button、Root Button
    Low-level peripherals 40 Pin + 12 Pin
    uart GPIO(1x3) pin UART, ground
    LED Power led & Status led
    Product size 65mm X 52.5mm
    Weight 30g

    BPI-P2 Pro Review:



    Online wiki documents: https://docs.banana-pi.org/en/BPI-P2_Pro/BananaPi_BPI-P2_Pro
