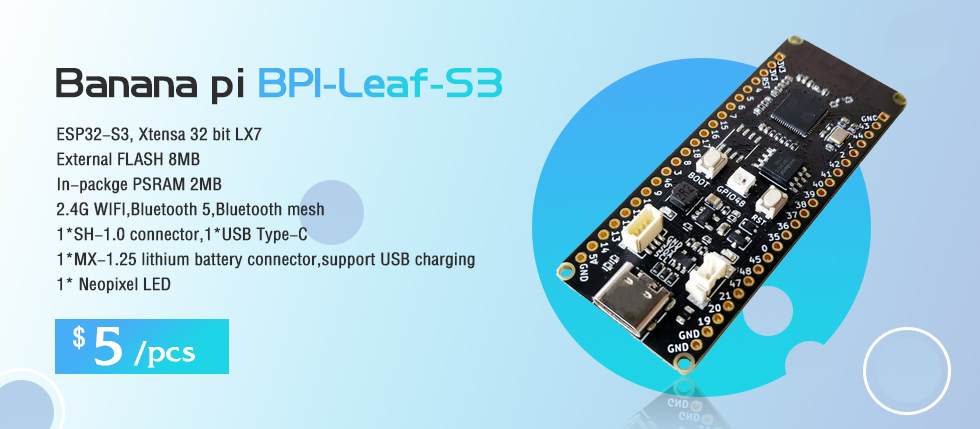

Banana Pi BPI-Leaf-S3 with ESP32-S3 design for STEAM educaton and IoT design

  • ESP32-S3,Xtensa® 32 bit LX7
  • External PSRAM , FLASH
  • Ultra-low power 10uA
  • 2.4G WIFI ,Bluetooth 5 ,Bluetooth mesh


    The Banana Pi Leaf series are low-power microcontrollers designed for the Internet of Things. Maker and STEAM education.
    The Leaf-S3‘s onboard ESP32-S3 chip is powered by an Xtensa® 32-bit LX7 dual-core processor with a main frequency of up to 240 MHz.
    It supports 2.4 GHz Wi-Fi and Bluetooth® LE dual-mode wireless communication, the peripheral is compatible with low-power hardware design, and the power consumption is only 10uA in deep sleep mode.The main controller supports two power supply modes: USB and external 3.7V lithium battery, which can realize the function of automatic power switching under dual power supply, and supports USB charging mode. Small size, convenient interface, easy to use, and can be directly applied to low-power IoT projects.In terms of programming, Leaf-S3 motherboard supports ESP-IDF, Arduino, micropython and other methods for programming and development.All IO pins corresponding to the chip are marked on the Leaf-S3 motherboard, which lowers the threshold for use.

    Key Features:
    1. ESP32-S3,Xtensa® 32 bit LX7
    2. External PSRAM , FLASH
    3. Ultra-low power 10uA
    4. 2.4G WIFI ,Bluetooth 5 ,Bluetooth mesh
    5. GPIO , ADC , TOUCH , PWM , I2C , SPI , RMT , I2S , UART , LCD,CAMERA ,USB , JTAG
    6. 1* 4pin I2C connector
    7. 1 * USB Type-C
    8. 1 * 2pin battery connector,support charging
    9. 1 * Neopixel LED

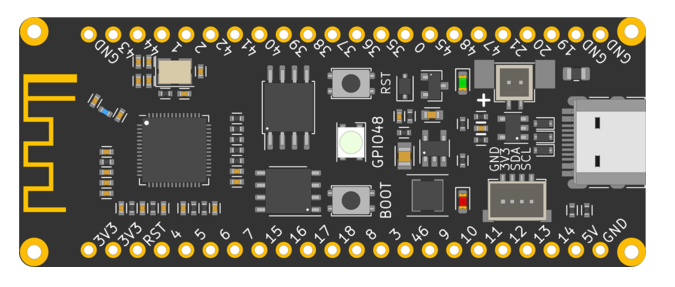

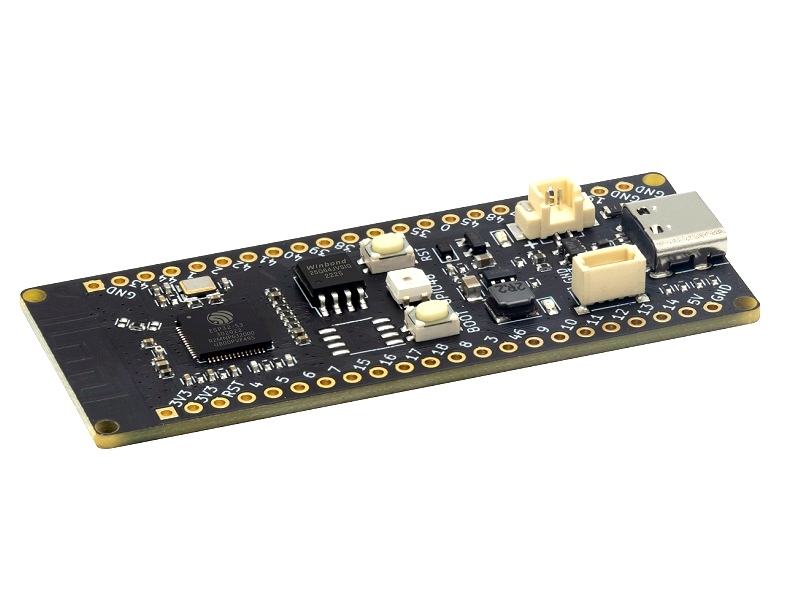

    Hardware sketch map:

    Hardware spec:
    BPI-Leaf-S3 Spec
    SoC ESP32-S3,Xtensa® dual-core 32-bit LX7 microprocessor
    Clock Frequency 240MHz MAX
    Ambient Temperature -40℃~+85℃
    Internal ROM 384 KB
    Internal SRAM 320 KB
    External FLASH ROM 8MB
    In-packge PSRAM 2MB
    WIFI IEEE 802.11 b/g/n ,2.4Ghz,150Mbps
    Bluetooth Bluetooth 5 ,Bluetooth mesh
    GPIO BPI-Leaf-S3 has led out 36 available gpios
    ADC 2 × 12-bit SAR ADCs, up to 20 channels
    Touch Sensor 14
    SPI 4
    I2C 2
    I2S 2
    LCD 1 × LCD interface (8-bit ~16-bit parallel RGB, I8080 and MOTO6800)
    CAMERA 1 × DVP 8-bit ~16-bit camera interface
    UART 3
    PWM 8 channels 14 bits
    MCPWM 2
    USB 1 × full-speed USB OTG,female Type-C socket
    USB Serial/JTAG controller 1,CDC-ACM ,JTAG
    Temperature sensor 1,range of –20 °C to 110 °C
    SD/MMC 1 × SDIO host controller with 2 slots,SD 3.0,SD 3.01,SDIO 3.0,CE-ATA 1.1,MMC 4.41,eMMC 4.5,eMMC 4.51
    TWAI® controller 1 ,compatible with ISO 11898-1 (CAN Specification 2.0)
    General DMA controller (GDMA) 5 transmit channels and 5 receive channels
    RMT 4 TX channels,4RX channels.Eight channels share a 384 x 32-bit RAM
    Pulse Count Controller 4 independent pulse counters (units).Each unit consists of two independent channels
    Timers 4 × 54-bit general-purpose timers.1 × 52-bit system timer.3 × watchdog timers
    External crystal oscillator 40Mhz
    RTC and Low­Power Management Power Management Unit (PMU) + Ultra-­Low-­Power Coprocessor(ULP)
    Deep-sleep consumption current 10uA
    Operating Voltage 3.3V
    Input Voltage 3.3V~5.5V
    Maximum discharge current 2A@3.3V LDO
    USB charge Support
    Maximum charging current 500mA
    Neopixel LED 1
    Online wiki documents: https://wiki.banana-pi.org/BPI-Leaf-S3
