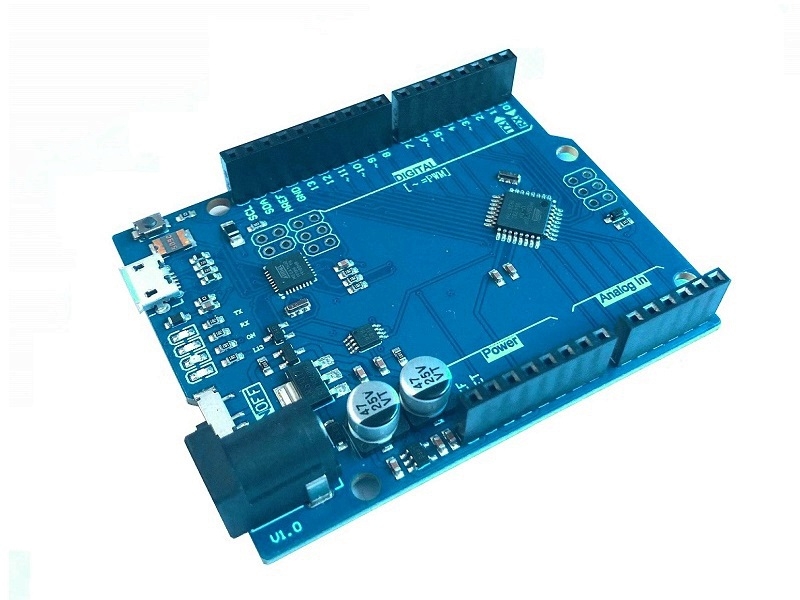

Banana Pi BPI-UNO arduino UNO development board

  • ATmega328P @16 MHz.
  • 32 KB Flash.
  • 2 KB SRAM.
    The BPI-UNO Arduino Uno is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

    Main spec:
    • ATmega328P @16 MHz.
    • 32 KB Flash.
    • 2 KB SRAM.
    • 1 KB EEPROM

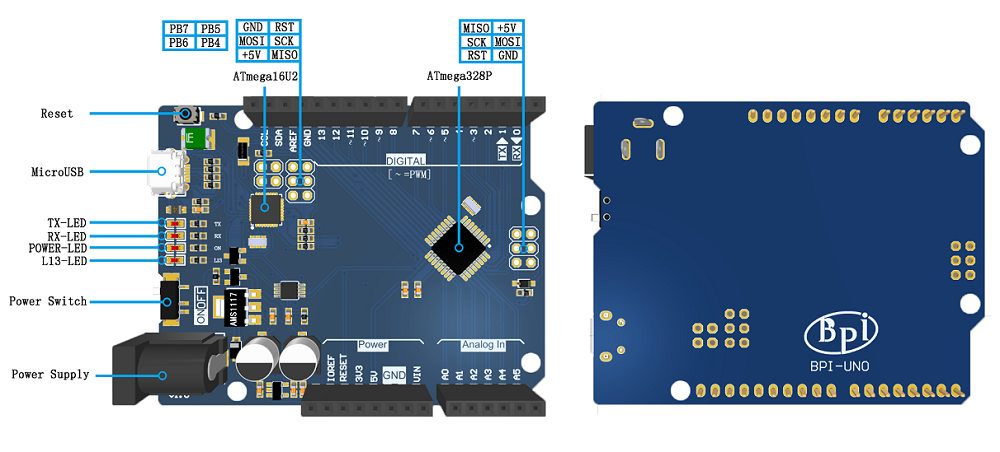

    Hardware interface:

    Hardware spec:
    Banana Pi BP-UNO
    Microcontroller ATmega328P
    Operating Voltage 5V
    Input Voltage: (recommended) 7-12V
    Input Voltage: (limits) 6-20V
    Digital I/O Pins 14(include 6 PWM output)
    PWM PIN 6个
    Analog Input Pins 6个
    I/O output Max 20mA
    3.3V output Max 50mA
    Flash 32KB(ATmega328P) and 0.5KB used by bootloader
    SRAM 2KB(ATmega328P)
    EEPROM 1KB(ATmega328P)
    Clock Speed 16MHz
    onboard LED 13
    size same as arduino NANO
    Online Wiki documents:
