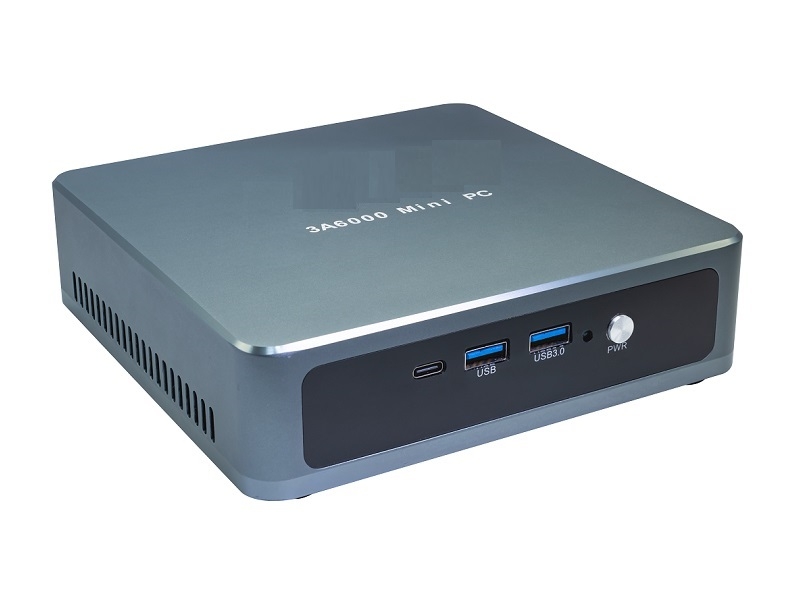

3A6000 Longson minicomputeruses mini case design, unique high density heat dissipation structure design, high performance, high density and high reliability in one; It is easy to move and saves space when it meets various application scenarios.

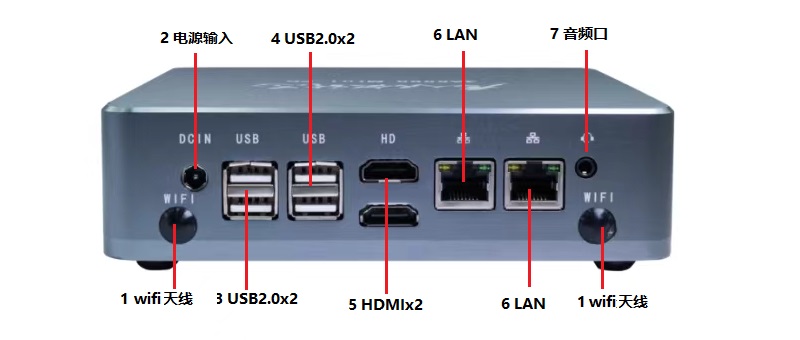

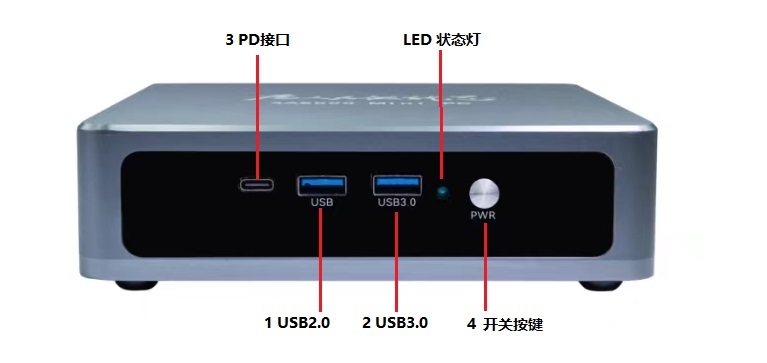

Hardware interface:
Hardware Spec：
|
Type |
Specifications |
|
CPU |
the fourth generation of Loongson 3A6000 4-core 8-thread processor, 2.0-2.5GHz |
|
Large capacity Level 3 cache (64KB/256KB/16MB) |
|
|
RAM |
2 x memory slots |
|
Supports the DDR4 3200 memory rate |
|
|
Maxs support 32GB memory |
|
|
only support SODIMM |
|
|
Flash |
support 1 个 M.2 2280 NVMe SSD (PCIE3.0 x4 ) |
|
Display |
2 x HDMI display interface，Built-in bridge GPU，1GB video memory，maximum resolution 1920x1080 |
|
WIfi |
support dual-band wireless WiFi 5G/2.4G，support 802.11AC |
|
support Bluetooth 5.0（RTL8822CE wireless network card does not support Bluetooth） |
|
|
External interface |
2 x USB 3.0 |
|
1 x TypeC PD，Support data transmission and external power supply (PD3.0 fast charge protocol) |
|
|
4 x USB2.0 |
|
|
2 x HDMI |
|
|
2 x RJ-45 Gigabit network |
|
|
1 x 3.5mm Headphone/microphone audio |
|
|
Reserved debugging interface |
1 x TTL level UART debugging interface，2.54mm |
|
1 x LA-JTAG interface，Mainly used for CPU debugging |
|
|
Size |
156mm x 154mm x 42 mm(长 x 宽 x 高) |
|
Power Supply |
Maximum power consumption: no more than 80W |
|
Adapter spec：DC19V 3.42A， 5.5/2.5mm |
|
|
cooling system |
1 x special custom cooling module |
|
operating system |
Loongnix/UOS/Kylin OS； |
|
Operating system support is subject to change without notice |
Online Wiki documents: https://docs.banana-pi.org/en/BPI-3A6000/BananaPi_BPI-3A6000
