Network&communication

Banana Pi BPI-CM2 computer module with Rockchip RK3568 ,Compatible with raspberry Pi CM4

Rockchip RK3568 Quad-core ARM Cortex-A55 CPU
Mali-G52 1-Core-2EE GPU
2GB LPDDR4/LPDDR4x (Max 8G)
8G eMMC flash (Max 128G)
Support Android and Linux system.
Compatible with raspberry Pi CM4
Size: 55x40mm

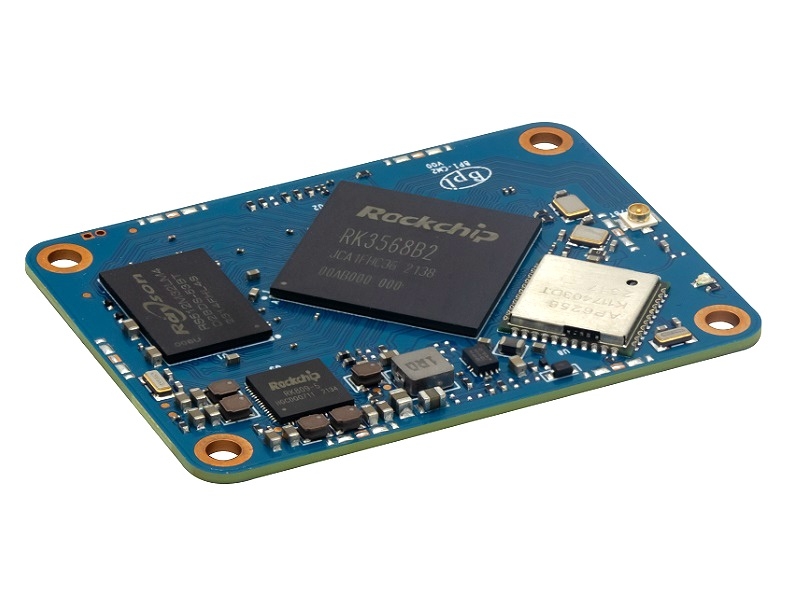

    Banana Pi BPI-CM2 is a computer module with Rockchip RK3568 Quad-core ARM Cortex-A55 CPU, Mali-G52 1-Core-2EE GPU,2GB LPDDR4/LPDDR4x ,8 G eMMC flash (Max 128G),Designed with Board to Board connectors for enhanced stability same as Raspberry Pi CM4 , which means that it should work with carrier boards designed for the Raspberry Pi CM4.
    Rockchip RK3568 provides a wealth of interface resources. In addition to the board-to-board connectors compatible with the Raspberry PI, other interfaces are also drawn from the board-to-board interface, so that you can design your own base board and use of the rich interface resources of the RK3568

    Application direction:
    • . Maker DIY
    • . Internet service gateway
    • . robot control
    • . Industrial control and industrial automation gateway
    • . Nas device
    • . Network and communication applications

    Key Features:
    • Rockchip RK3568 Quad-core ARM Cortex-A55 CPU
    • Mali-G52 1-Core-2EE GPU
    • 2GB LPDDR4/LPDDR4x (Max 8G)
    • 8G eMMC flash (Max 128G)
    • Support Android and Linux system.
    • Size: 55x40mm
