Smart Router

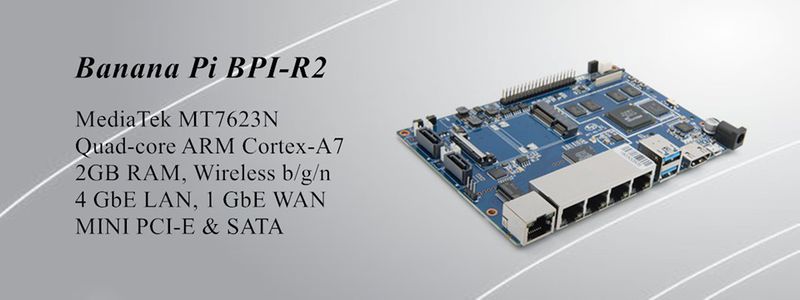

Banana Pi BPI-R2 Router board with MediaTek MT7623N chip design

  • MediaTek MT7623N, Quad-core ARM Cortex-A7
  • Mali 450 MP4 GPU
  • 2G DDR3 SDRAM
  • Mini PCIE interface.
  • support 2 SATA interface
  • MicroSD slot supports up to 256GB expansion
  • 8G eMMC flash (option 16/32/64G)
  • MIPI display interface support
  • 5 port 10/100/1000 Mb Ethernet port
  • (2) USB 3.0 and (1) USB 2.0 otg port
  • 1080P high-definition video playback
  • HDMI port and multi-channel audio output
  • WIFI&Bluetooth 4.1 with 802.11B/G/N onboard

    Banana PI BPI-R2 is a highly integrated multimedia network router;it can be used for high wireless performance, home entertainment,home automation and so on.
    BPI-R2 integrate a Quad-code ARM Cortex-A7 MPcore operating up to 1.3GHz, The Router also includes a variety of peripherals, including HDMI TX, MIPI DSI, PCIe2.0, USB2.0 OTG, USB3.0 Port, SATA port,5 Gbps Port Gigabit Ethernet port, 802.11a/b/g/n wifi & BT4.1 onboard, also support 802.11ac/n WLAN connection thru mini PCI-e port

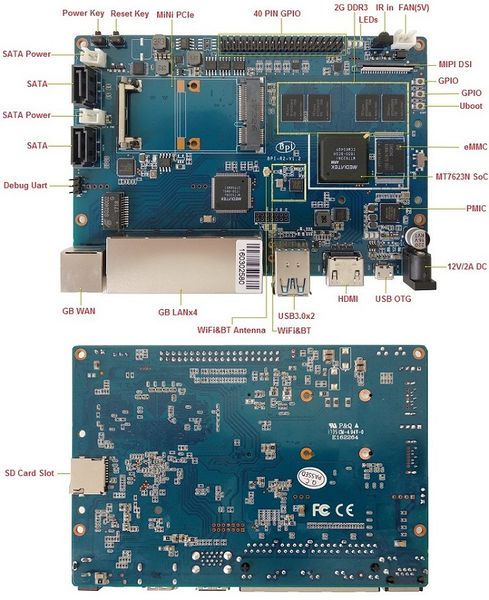

    Hardware interface:



    Hardware spec:
    Banana Pi R2
    CPU MediaTek MT7623N, Quad-core ARM Cortex-A7
    GPU Mali 450 MP4 GPU
    Memory 2G DDR3 SDRAM
    Storage Onboard 8GB eMMC Flash, Micro SD-Card slot, Two SATA 2.0 Port
    Network 5 x 10/100/1000 Mbit/s Ethernet (MT7530)
    WIFI&BT Wi-Fi 802.11 b/g/n 2.4G/5G + Bluetooth BT4.1(MT6625L)
    Display(s) HDMI (Type A) output with HDCP 1.4, resolutions up 1920x1200; MIPI Display Serial Interface (DSI) interface(4 data lanes)
    Video decoder(s) Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc. H.264 high-profile 1080p@60fps, HEVC/H.265 1080P@60fps
    Audio Output(s) HDMI & I2S
    USB port USB 3.0 PORT (x2), USB OTG (x1)
    mini PCIE 1 mini pcie interface & 1 pcie pin define interface
    Remote IR Receiver (x1)
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
    Switches Reset button, Power button, U-boot button
    LED Power Status and 8P8C
    Power Source 5 volt @2A via DC Power and/or Micro USB (OTG)
    Size & Weight 148 mm × 100.5mm 100g
    OS OpenWRT, Debian, Ubuntu, Raspbian and others OS

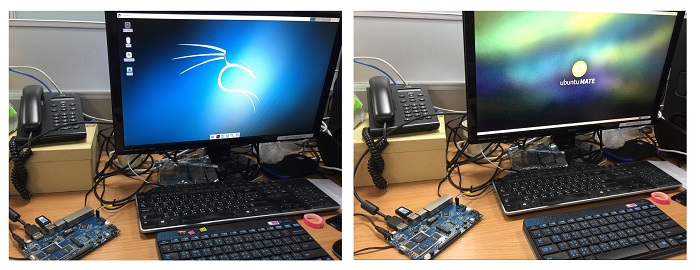

    BPI-R2 can run with Android5.1 smoothly, it also can run OpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-R2 same as BPI-R1, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi 3


    Online wiki development documents: https://docs.banana-pi.org/en/BPI-R2/BananaPi_BPI-R2
