Mini PC

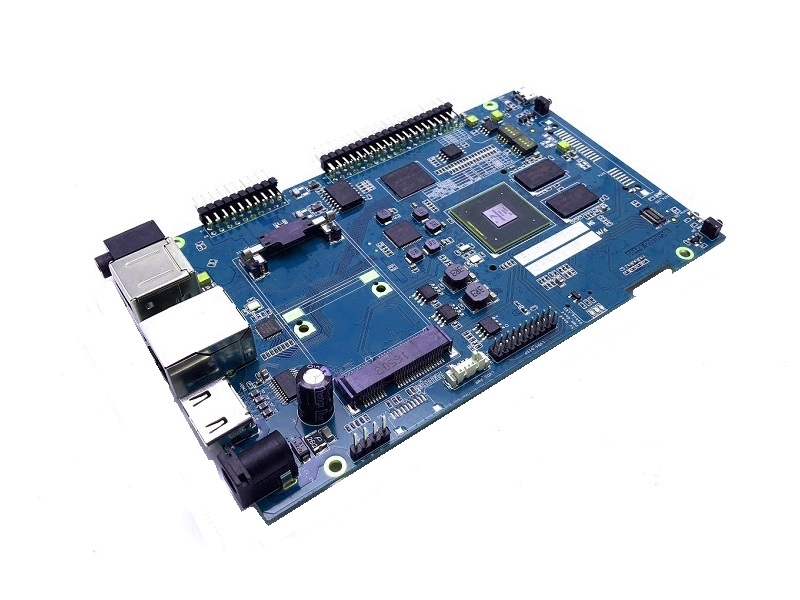

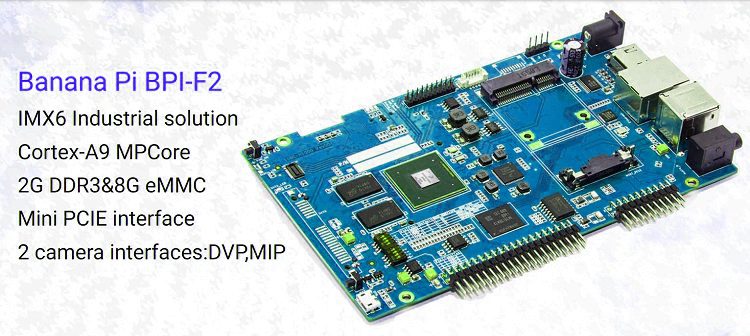

Banana Pi BPI-F2 Industrial control development board with freescale IMX6 chip design

  • freescale IMX6 Industrial solutions.
  • 2G DDR3
  • 8G eMMC flash
  • CAN bus function support
  • Mini PCIE interface
  • 2 camera interface:DVP and MIP

    Banana Pi BPI-F2 use freescale IMX6 Industrial chip design. IMX6 with ARM Cortex-A9 MPCore 4xCPU processor(with TrustZone),this is ths first banana pi board design with freescale chip.

    Key Features:
    • freescale IMX6 Industrial solutions.
    • 2G DDR3 and 8G eMMC flash
    • CAN bus function support
    • Mini PCIE interface
    • 2 camera interface:DVP and MIP

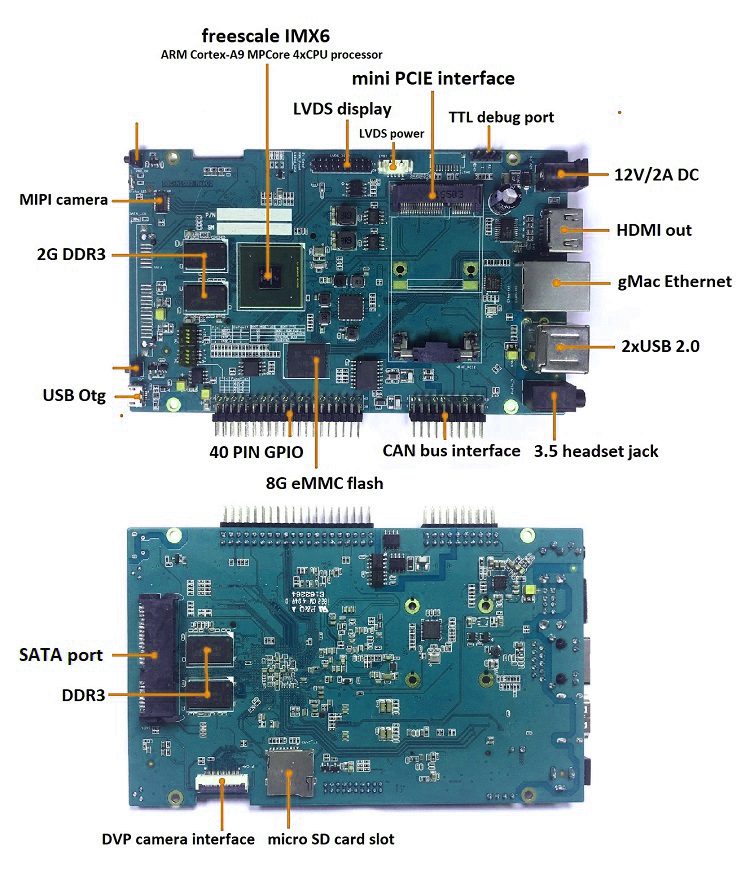

    Hardware interface:


    Hardware spec:
    HardWare Specification of Banana pi BPI-F2
    Soc freescale IMX6
    CPU ARM Cortex-A9 MPCore 4xCPU processor(with TrustZone)
    GPU OpenGL ES 2.0 3D graphics accelerator with forshaders,2D graphics accelerator,and didicated OpenVG 1.1 accelerator
    SDRAM 2G DDR3
    PCIE 1 mini PCIE interface
    CAN bus 1 CAN bus interface
    SATA support 1*SATA interface
    GPIO 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
    On board Network 10/100/1000 Mbit/s Ethernet
    Wifi Module N/A
    Bluetooth N/A
    On board Storage MicroSD (TF) card,8G eMMC onboard (option 8-64G)
    Display HDMI out, LVDS out
    Video HDMI out, LVDS out
    Audio outputs 1 * 3.5 headset jack
    Camera 1 * DVP camera interface and 1* MIP camera interface
    Audio input N/A
    USB 2 * USB 2.0 1* USB Otg
    Buttons Power & Reset
    Leds 3* RGB leds
    IR N/A
    DC Power 12V/2A with DC port
    battery No 3.7V lithium battery power support
    Sizes
    Weight 80g
    Online wiki development documents: https://docs.banana-pi.org/en/BPI-F2/BananaPi_BPI-F2
