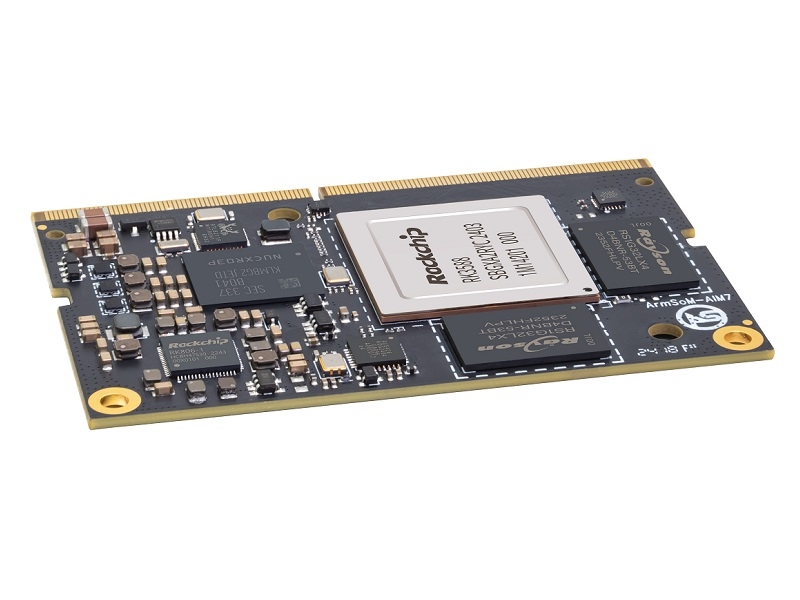

Banana Pi BPI-AIM7 Core board with RK3588,fully compatible with Jetson Nano/TX2 NX

SOC: Rockchip RK3588 4-core A76 @ 2.4GHz + 4-core A55 @ 1.8GHz, 8nm process
GPU: ARM Mali-G610 MP4
NPU: Computing power up to 6 TOPS (INT8), supports INT4/INT8/INT16 mixed computing
RAM: 8GB/16GB/32GB (max 32GB) 64bit LPDDR4x, default LPDDR4x 8GB
Flash: 32GB/64GB/128GB eMMC, default eMMC 32GB
Interface type: 260pin SO-DIMM connector, compatible with Jetson TX2 NX
    BPI-AIM7 uses Rockchip RK3588, a new generation flagship eight-core 64-bit processor with a main frequency of up to 2.4GHz, 6 TOPS computing power NPU, and can be equipped with up to 32GB of large memory. While the interface is fully compatible with Jetson Nano, the PCIe interface has been upgraded to PCIe3.0 4-lane and PCIe2.1 1-lan.



    Key Features:
    * SOC: Rockchip RK3588
    * CPU: RK3588 quad-core Cortex-A76 @ 2.4GHz + quad-core Cortex-A55 @ 1.8GHz, 8nm process
    * GPU: ARM Mali-G610 MP4
    * NPU: Computing power up to 6 TOPS (INT8), supports INT4/INT8/INT16 mixed computing
    * VPU/Codec:
    * * Hardware decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
    * * Hardware encoding: 8K@30fps H.265 / H.264
    * RAM: 8GB/16GB/32GB (max 32GB) 64bit LPDDR4x, default LPDDR4x 8GB
    * Flash: 32GB/64GB/128GB eMMC, default eMMC 32GB
    * Interface type: 260pin SO-DIMM connector, compatible with Jetson TX2 NX
    * Working voltage: 5V DC
    * Temperature: Operating temperature: 0°C to 80°C, Storage temperature: -20°C to 85°C
    * Humidity: Relative humidity: Operation: 10% to 90%, Storage: 5% to 95%
    * operating system:
    * * Rockchip official support: Android 12.0, Debian11, Buildroot
    * * Third-party support: Armbian 23.07, Ubuntu 20.04, Ubuntu22.04, Kylin OS
    * PCB: 12-layer PCB board design
    * Size: 69.6 mm x 45 mm

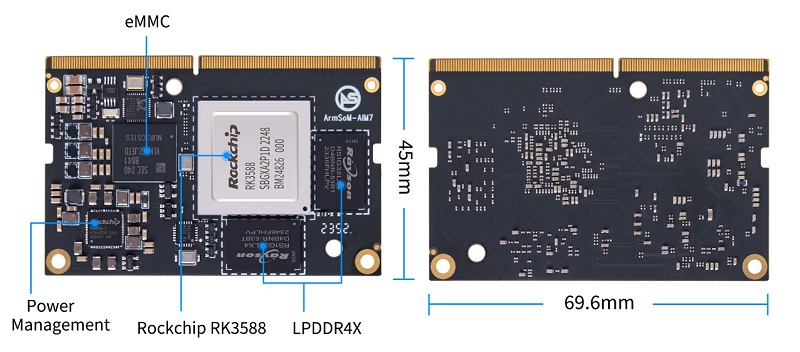

    BPI-AIM Hardware inerface:

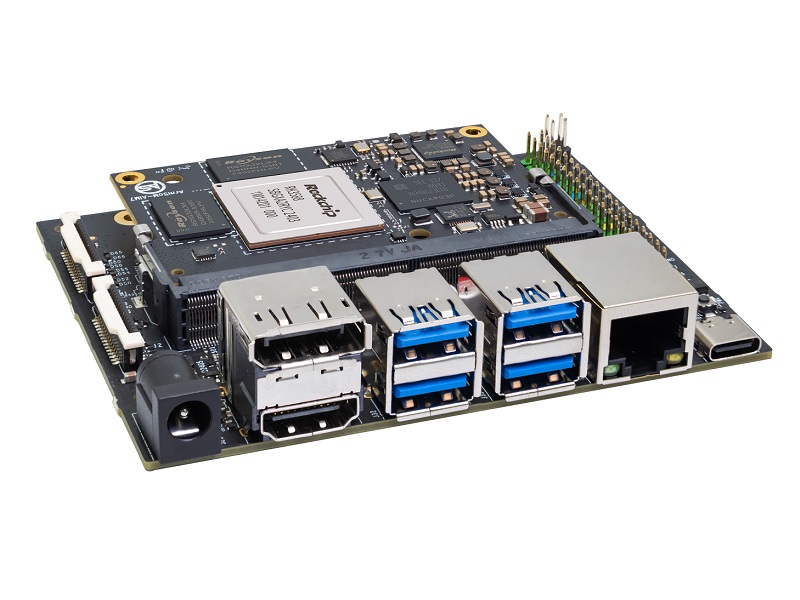

    BPI-AIM7 developemnt Kit:

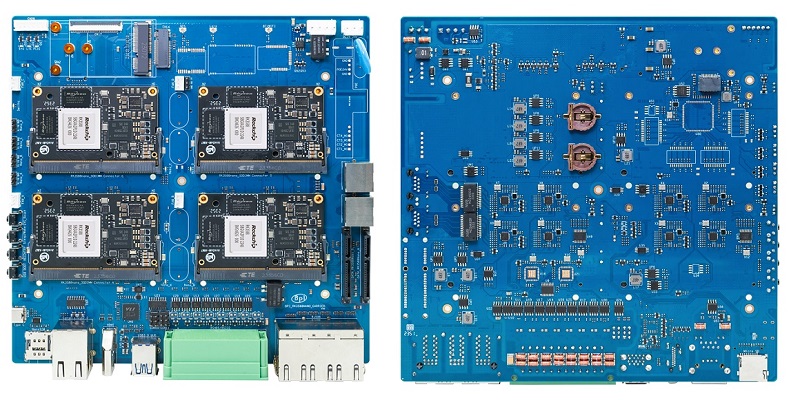

    BPI-AIM7 for Edge computing gateway design:


    Online development documents: https://docs.banana-pi.org/en/BPI-AIM7/BananaPi_BPI-AIM7
