Industrial control

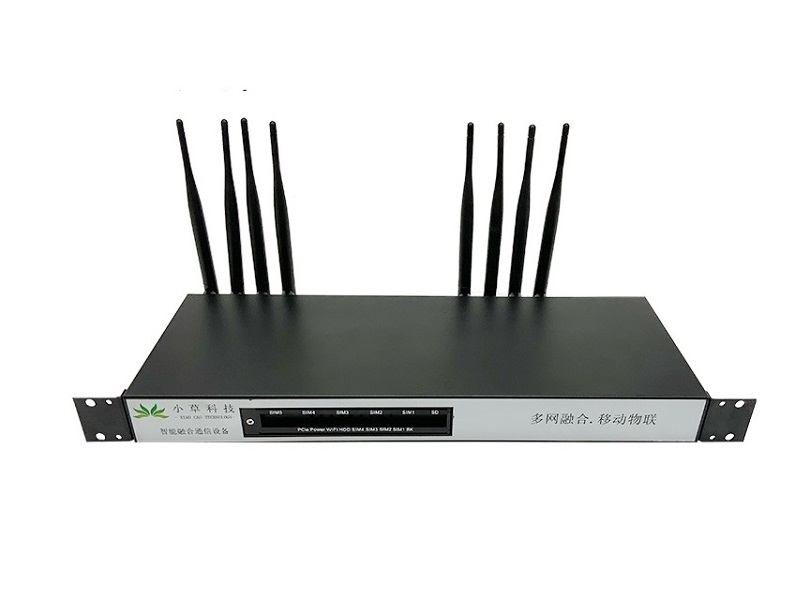

4G/5G MPTCP Converged communication gateway design

  • MediaTek MT7623N/MT7622E Router chip design
  • 1x5G port , via M.2 inerface USB 3.0 or PCIe bus.
  • (1-6)x4G LTE , support OpenMPTCPRouter protocol.
  • 5xGigabit port. support VPN ,router function.
  • wifi 802.11 b/g/n/ac function support.
  • IoT expanding application with 26 PIN GPIO
  • (1-2)G DDR and 8G eMMC flash
  • M.2 key B interface


    this is a BPI 4.0 Server base on Banana Pi BPI-R64  and Banana Pi BPI-R2 design,use MTK7622/MT7623N chip design, with the main frequency up to 1.35g. Onboard 1-2g DDR memory and 8g eMMC storage.Can support OpenWRT,Linux operating system, in-depth customization of xiaocao technology integrated communication software platform.Provide a complete fusion communication, multi - link communication solution.And supports IoT extensions.Free access to IoT applications.
    • Module 1 : Base on BPI-R2,ithas 4 x 4G LTE interface ,can support max 5 port 4G LTE module ,support OpenWRT and OpenMPTcpRouter protocol. have one PCIe for 2.4G/5.8G wifi AC, can support MT7615 wifi module. and we also design a 5G inerface , easy to add 5G module onboard to support 5G. and have 5 Gigabit Wan/Lan port to spport router function
    • Module 2 : Base on BPI-R64 ,support 5 4G LTE and 1 M.2 5G interface.support OpenWRT and OpenMPTcpRouter protocol. have one PCIe for 2.4G/5.8G wifi AC, can support MT7615 wifi module. and we also design a 5G inerface , easy to add 5G module onboard to support 5G. and have 5 Gigabit Wan/Lan port to spport router function
    • Module 3 :Base on BPI-R64,support 3 4G LTE inerface and 2 M.2 5G interface,support OpenWRT and OpenMPTcpRouter protocol. have one PCIe for 2.4G/5.8G wifi AC, can support MT7615 wifi module. and we also design a 5G inerface , easy to add 5G module onboard to support 5G. and have 5 Gigabit Wan/Lan port to spport router function
    product feature:
    • 1. 5G high-speed access, 5G technology has higher throughput, providing a higher possibility for the Internet of everything, real-time.

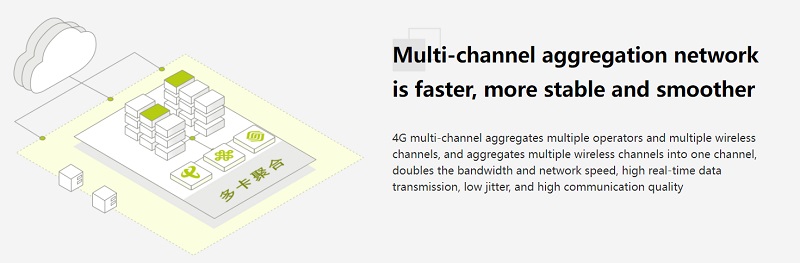

    • 2. 4g Multiple Merges support, network speed guarantee: multi-channel cable, 4-channel 4G wireless link can be aggregated to form a high-speed, stable and safe high-capacity upstream and downstream channel. Support 4G wireless network mixing of all mobile/unicom/telecom operators, and support dedicated line /DAL cable link and satellite link.
    • 3. High stability and convenience: the data transmitted by the front end can better optimize and configure the load of the links, so as to effectively avoid the link congestion caused by blind data transmission, maximize the use of all available channels, and form a stable communication link.
    • 4. High security: after the original data is unpacked and encrypted by the fusion device, it is sent to the server through different channels. The load of each link is dynamically adjusted according to the communication capacity of each channel. The terminal and server are also equipped with VPN to protect the data up to 4 times.
    • 5. Industrial-grade AP access: industrial-grade AP module is built in the device, suitable for WIFI device access/bridge and other scenarios in various environments.
    • 6. Enrich the IoT extension interface,support Zigbee,Z-Wave,NB-IoT,LoRA,PLC....

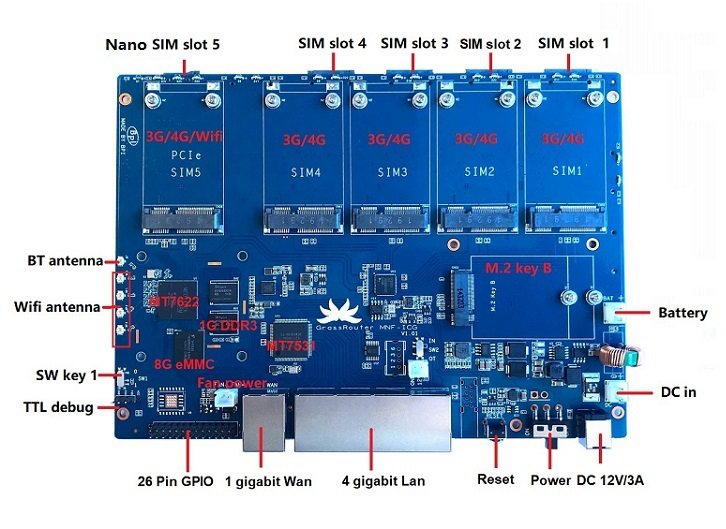

    PCBA inerface(one for example):

    Bananapai team provides product function definition, hardware design, BSP-level software development, appearance mold design, production testing, supply chain management, direct integration to customers,product level delivery.



    Online wiki documents:https://wiki.banana-pi.org/5G_%2B_4G_LTE%2BWifi_AC%2BGigabit_Multiplex_aggregate_route
    Product website: Shenzhen Xiaocao Information Technology Co., Ltd
