Network & communication

Banana Pi BPI-S64 core use Actions SOC S700 design. with 2G LPDDR3 and 8G eMMC

CPU: Actions SOC S700,ARM Cortex-A53 Quad-Core CPU
GPU:Mali450 MP4 GPU ,OpenGL ES2.0/1.1 OpenVG 1.1 EGL 1.5
2GB LPDDR3
8GB eMMC flash onboard
    Banana Pi BPI-S64 core use Actions SOC S700 design. S700 chip with ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU. BPI-S64 core with 2G LPDDR3 and 8G eMMC flash onboard.
    BPI-S64 core modules are small enough to fit all kinds of hardware.In addition,S64 core also provides I/O boards with GPIO ports, as well as USB, MicroUSB, CSI, DSI, HDMI, and MicroSD and other many interfaces.

    Key Features:
    1. CPU: Actions SOC S700,ARM Cortex-A53 Quad-Core CPU
    2. GPU:Mali450 MP4 GPU ,OpenGL ES2.0/1.1 OpenVG 1.1 EGL 1.5
    3. 2GB LPDDR3
    4. 8GB eMMC flash onboard

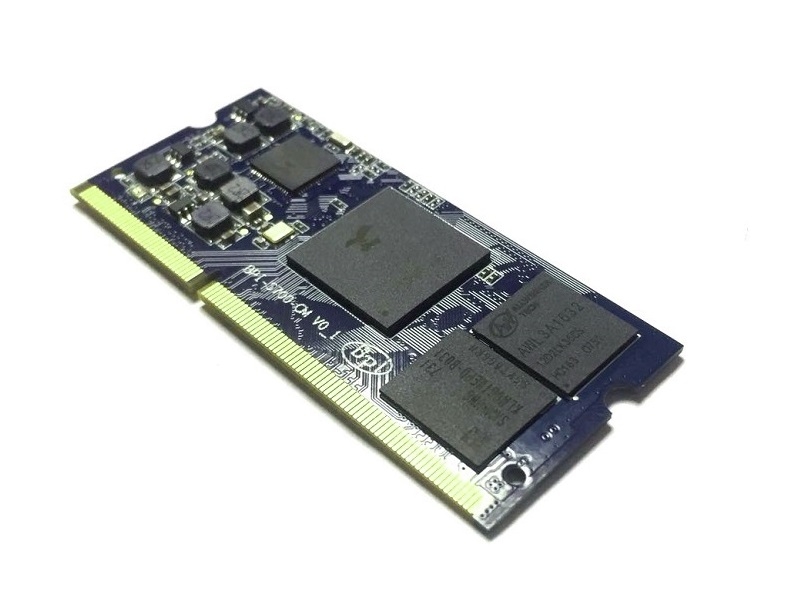

    BPI-S64 core board.

    BPI-S64 core board spec:
    HardWare Specification of Banana pi BPI-S64 core
    CPU Actions SOC S700,ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU
    Memory 2GB LPDDR3
    Storage 8GB eMMC
    interface SODIMM-DDR3,204 PIN , all S700 GPIO support
    size 67.5 x 30 mm
    BPI-S64 core Kit with expansion development board

    HardWare Specification of Banana pi BPI-S64 core kit
    CPU Actions SOC S700,ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU
    GPU Mali450 MP4 GPU ,OpenGL ES2.0/1.1 OpenVG 1.1 EGL 1.5
    Memory 2GB LPDDR3
    Storage 8GB eMMC
    Power 5V @ 2A via DC power
    Low-level peripherals 26 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
    Onboard Network 1 x 10/100/1000Mbps Ethernet
    Wifi/Bluetooth AP6212 WiFi and BT 4.0
    On board Storage MicroSD (TF) card; 8G eMMC;SIM card slot
    Display HDMI (Type A) output with HDCP 1.4, resolutions up 1920x1200; MIPI DP ;LVDS
    Video decoder/encode support Real-time vide decode of most popular vide formats ,such as MPEG-4,H.264,H.265. support video encoder for baseline H.264
    Audio support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 1 MIC in
    HDMI Out/In 1* HDMI 1.4
    Audio outputs/Inputs HDMI, I2S audio,Audio micro out
    4G USB standard 4G LTE interface
    USB 3.0 1x USB 3.0 host
    USB 2.0 1x USB 2.0 OTG, 1 x USB port
    Display 1* Mini DP ,1* LVDS lcd,
    Camera 1 x DVP camera interface ,1 x MIPI interface
    RTC battery RTC battery power interface
    battery 3.7V battery interface.
    Buttons Reset button, Power button, ADC button
    Leds Red, Green, Blue
    Other IR reciever
    Sizes
    Power DC 5V/2A
    Weight 150g
    Online wiki documents:https://wiki.banana-pi.org/Banana_Pi_BPI-S64_Core
